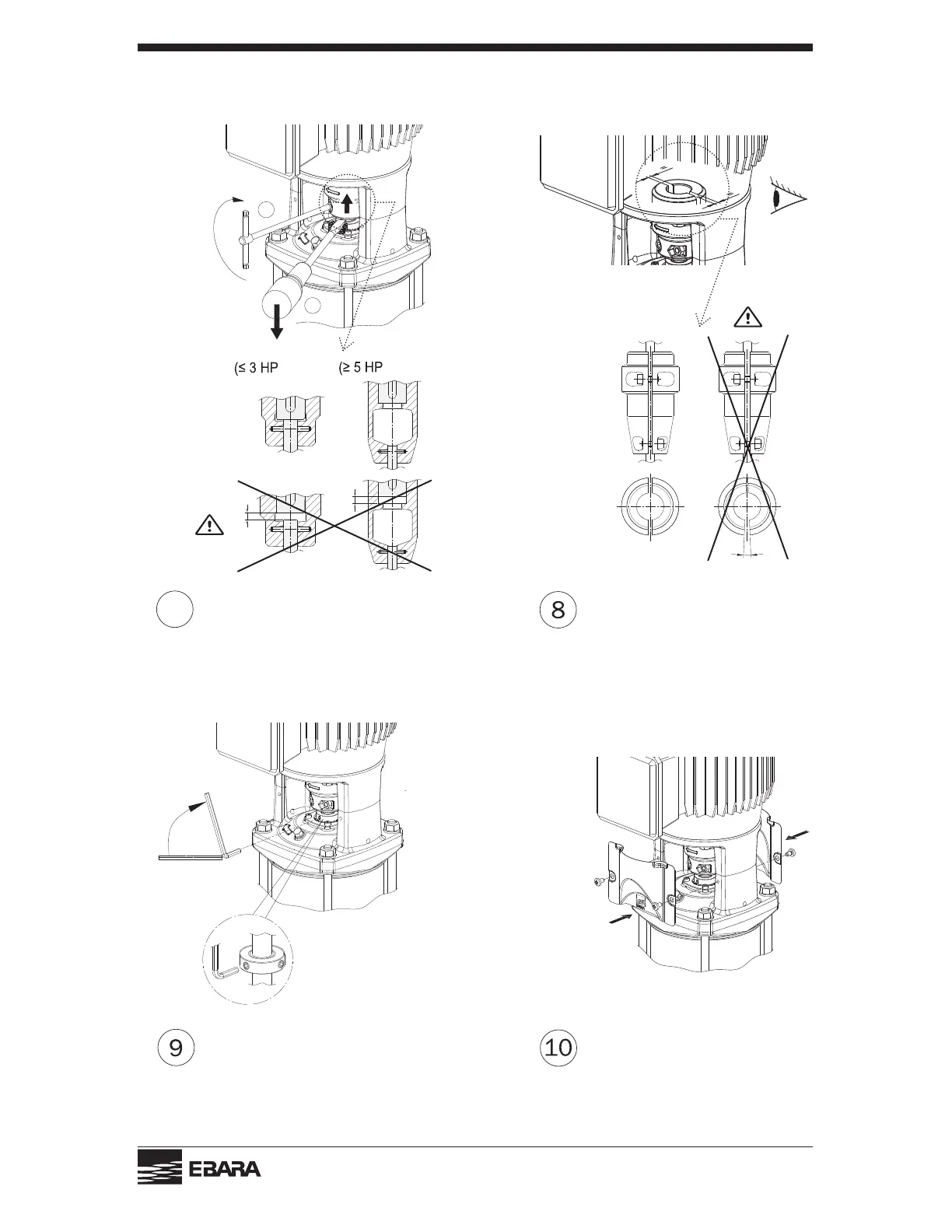

ASSEMBLING THE MOTOR TO THE PUMP - EVMSU1 to EVMSU20 [-A-]
7
3 Nm
(2.2 lb-ft)
M6=15 Nm
(11 lb-ft)
M8=18 Nm
(13 lb-ft)
M10=50 Nm
(37 lb-ft)
a
b
EVMSU )
EVMSU )
