ECGMAC EM-301 - Patient Cable Connection

20
Electrode Position Electrode identifier Lead wire color
Electrode
color code
Right arm
R Grey
Red
Left arm
L Grey
Yellow
Right foot
RF Grey
Black
Left foot F Grey Green
C1 White
Red
C2 White
Yellow
C3 White
Green
C4 White
Brown
C5 White
Black
Chest
C6 White
Purple

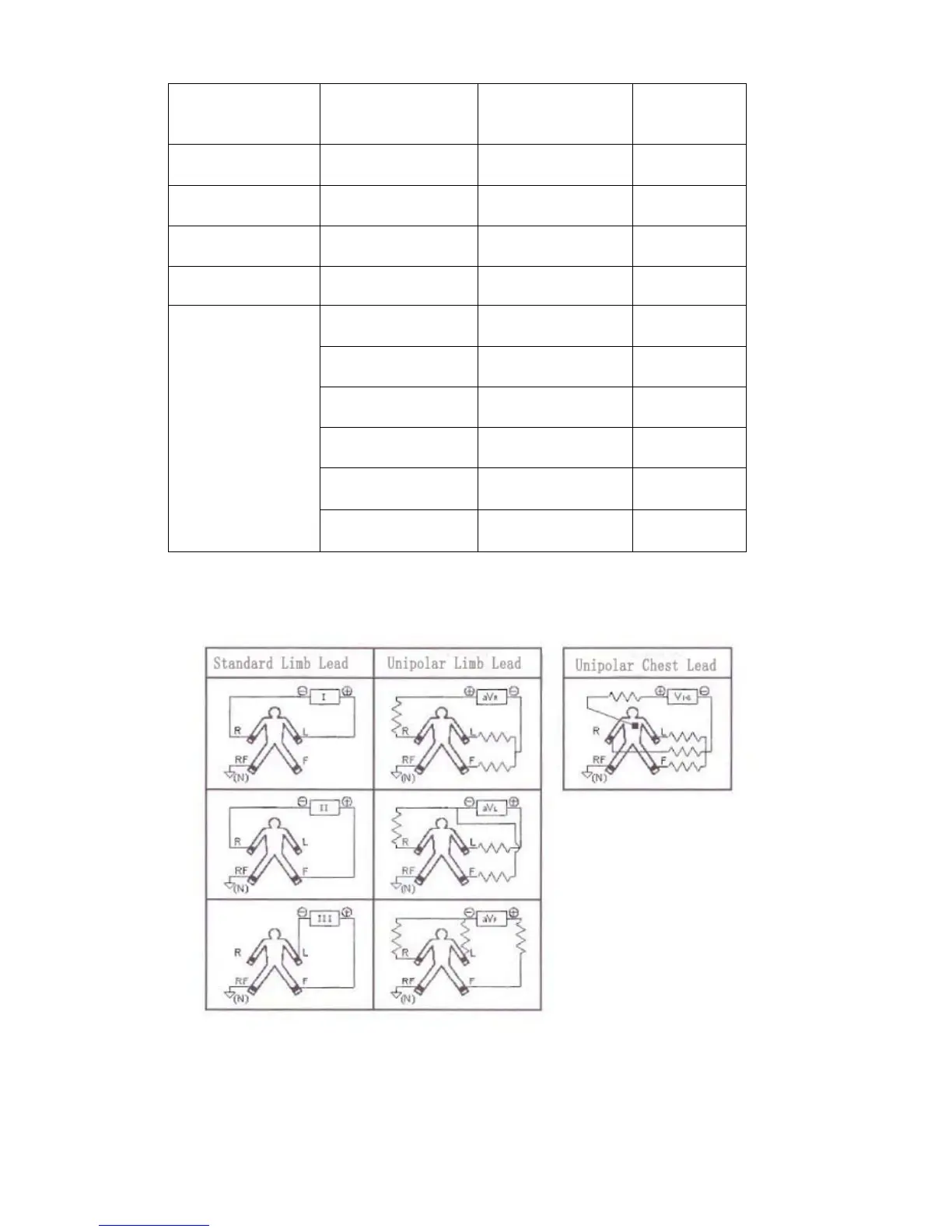

3.2.4 Lead method and system diagram
3.3 Patient cable connection
Plug the patient cable connector into the socket on the right side of ECG machine as shown
