below, and lock the screw on both sides.
Only use the designated patient cables. Do not use any other models.
Patient cables socket is designed for ECG signal input only. Do not use it for other
Purpose
The instrument has built-in defibrillator protection circuit with supporting non
defibrillation protection cables
3.4 Power connection
3.4.1 AC power
Plug one end of three-core power cord to the power socket on the ECG and the other end to the
socket on the wall as shown below:
3.4.2 DC Battery
The battery is not put into the battery compartment when it is dispatched with the machine, it needs
installation after receive it. After receiving the ECG, if built‐in rechargeable battery is to be used,
check the battery capacity and condition.

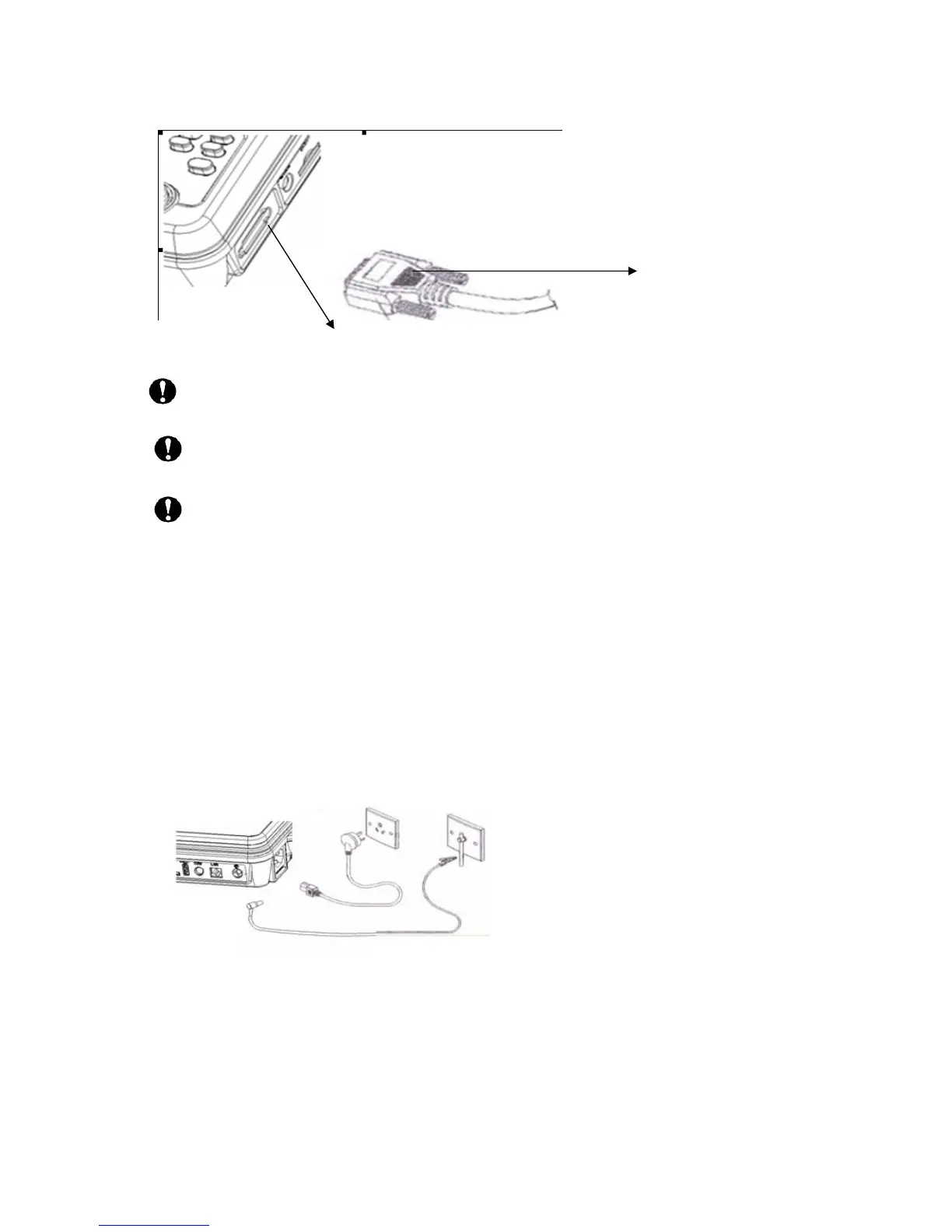

Patient Cable
Patient Cable Socket
