4.5 Battery Installation

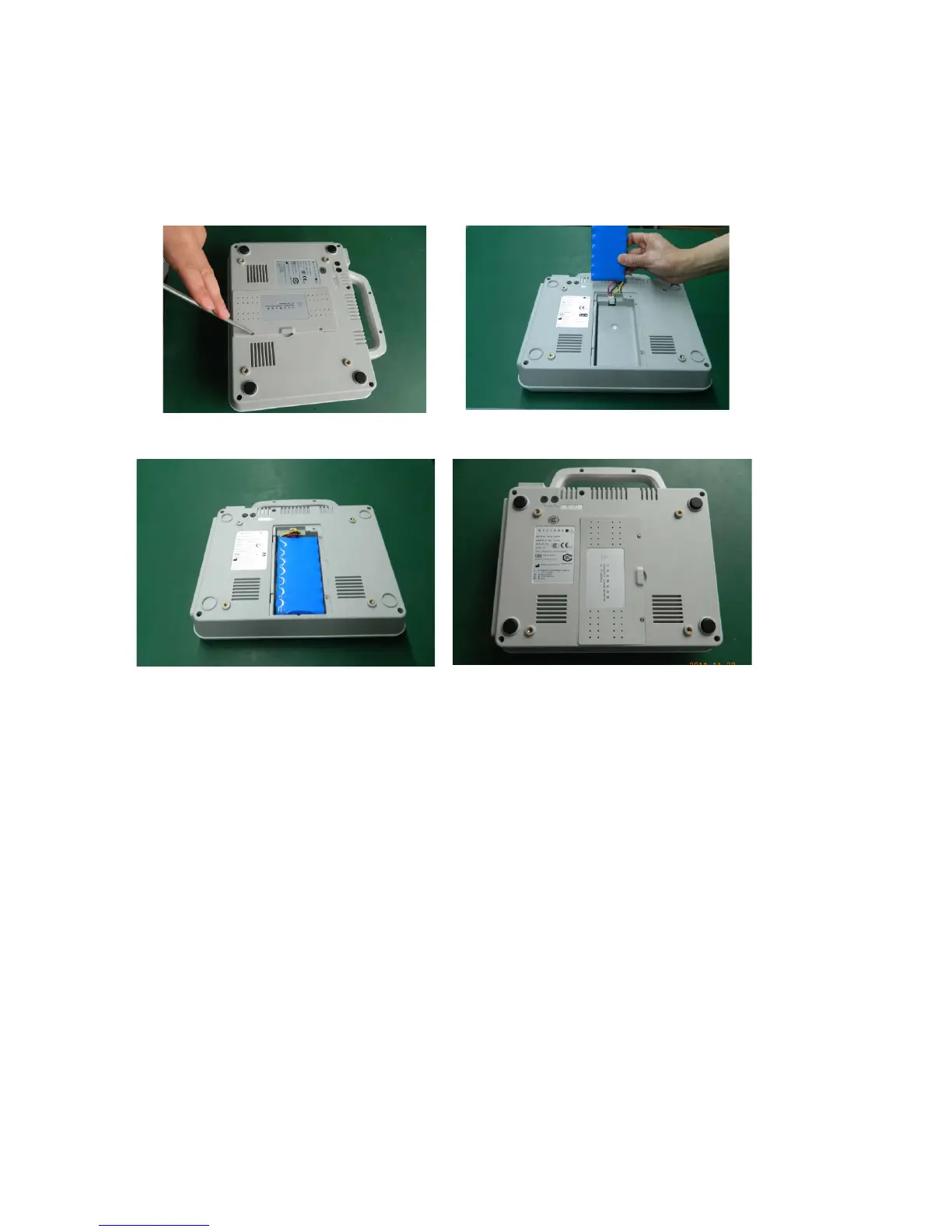

See Figures below for installation:
1. Turn the electrocardiograph upside-down, unscrew and remove the battery door as A enclosed;
AB
2. Put out the battery from accessories box; make sure the leads are all in order as Picture B.
C D
3. Tidy the leads, and
put the battery into the battery pack horizontally (as Picture C)
4. Close the battery cover and screw it tightly clockwise. (As picture D)
4.6 Recording paper
EM-301: 80mm width*20M thermal rolled paper
EM-601: 110mm width*20M thermal rolled paper
