Replay

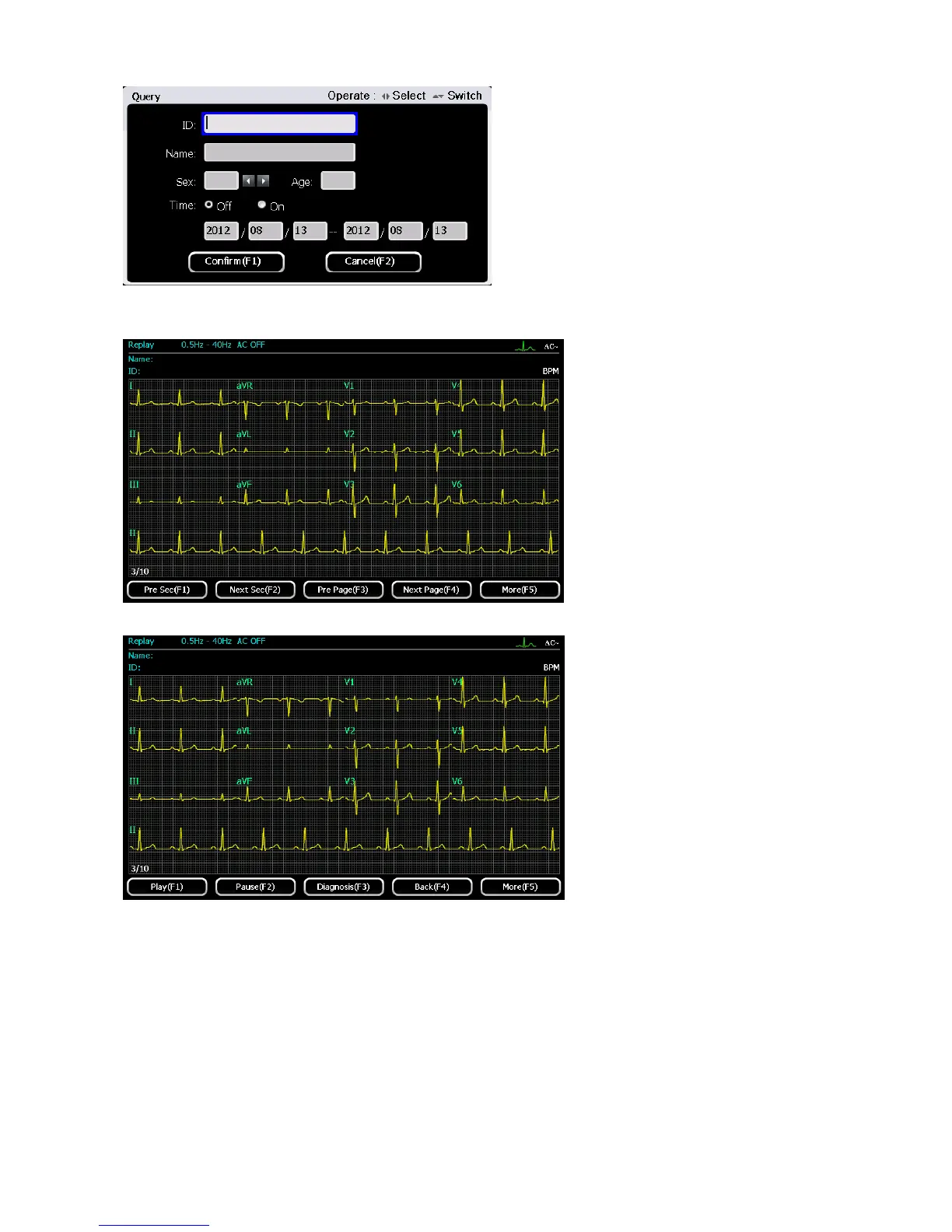

Press F4 to Freeze the waveform displayed on the main interface.
Press MORE to next page.
It is able to freeze up to 120 seconds ECG waveform, 10 seconds ECG waveform at least.(the figure showed
above is the data freeze for 10 seconds, ECG waveform is displayed from the 3
rd
second.)
Pre Sec: Display from previous second.
Next Sec: Display from next second.
Pre Page: Display from previous page
Next Page: Display from next page.
Play: Play from the current displayed waveform
Pause: Pause in the play process
Diagnosis: make diagnosis for the 10 seconds ECG waveform current displayed
