Echo CS-310 Service Manual

STARTER SYSTEM
CS-310
8

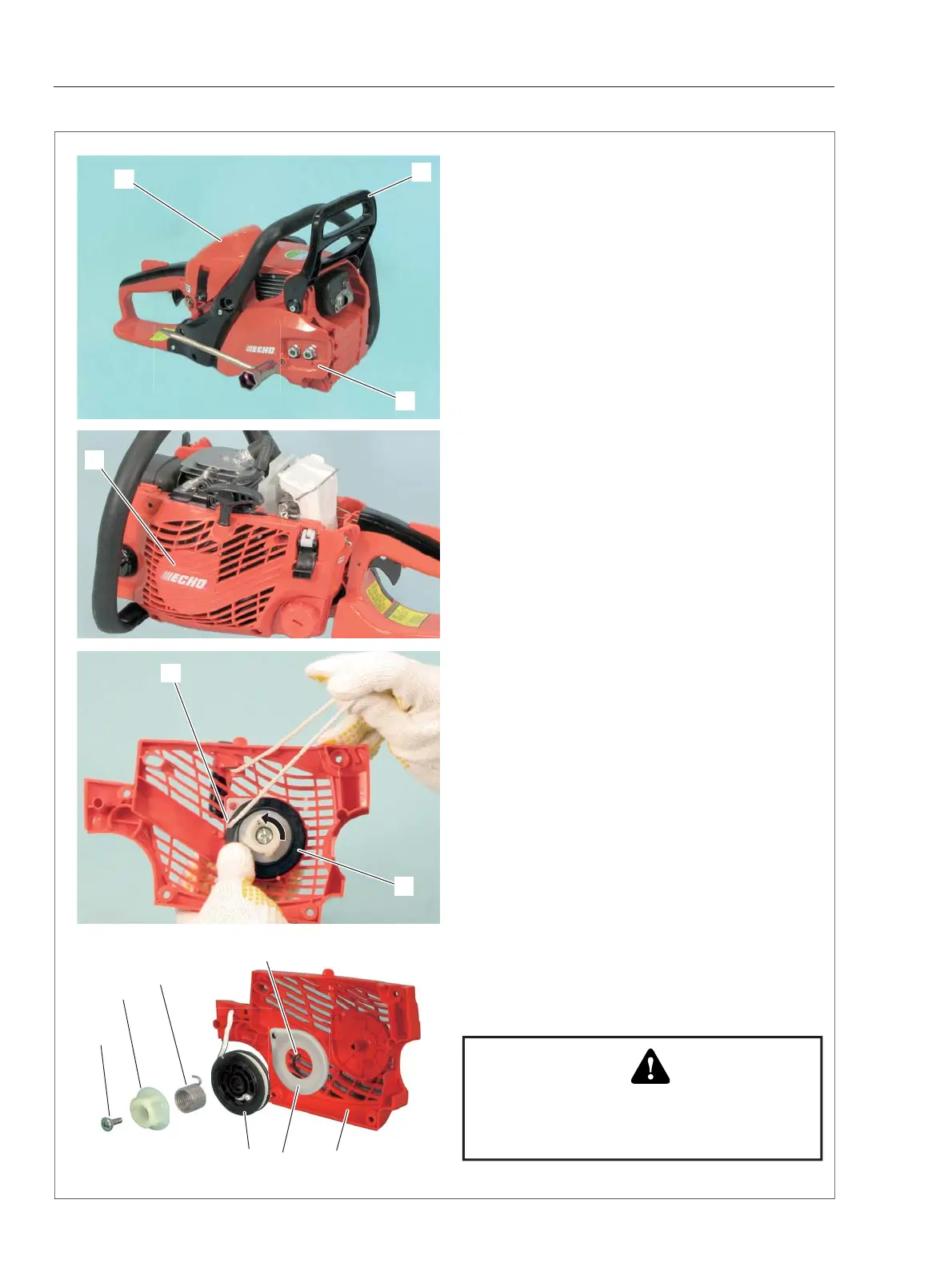

2-1 Disassembling starter assembly
1. Remove sprocket guard (A).
2. Remove brake lever (B) and cylinder cover (C).
3. Remove three screws and remove starter as-
sembly (D) from unit.
4. Pull out starter rope about 30 cm (12 in) and
hold rope reel (E) by hand. Loop excess rope in
rope reel notch (e) as shown.
5. Rotate rope reel (E) counterclockwise to release
tension of rewind spring.
6. Remove screw (F).
7. Remove pawl catcher (G) and power spring (H).
8. Remove rope reel (J) from starter case (K) slow-
ly to prevent rewind spring (L) from unwinding.
9. Remove rewind spring case assembly (M) from
starter case (K).
WARNING DANGER
Wear eye protection and take care when
removing starter drum. Rewind spring may
unwind suddenly and cause personal injury.
A
B
C
D
F
G
H
e
E
J
K
L
M

Echo CS-310 Specifications

General

Engine Displacement	30.5 cc
Bar Length	14 inches
Weight	8.8 lbs
Chain Pitch	3/8 inch
Chain Gauge	0.050 inch
