Echo CS-310

CHAIN BRAKE SYSTEM
CS-310
43

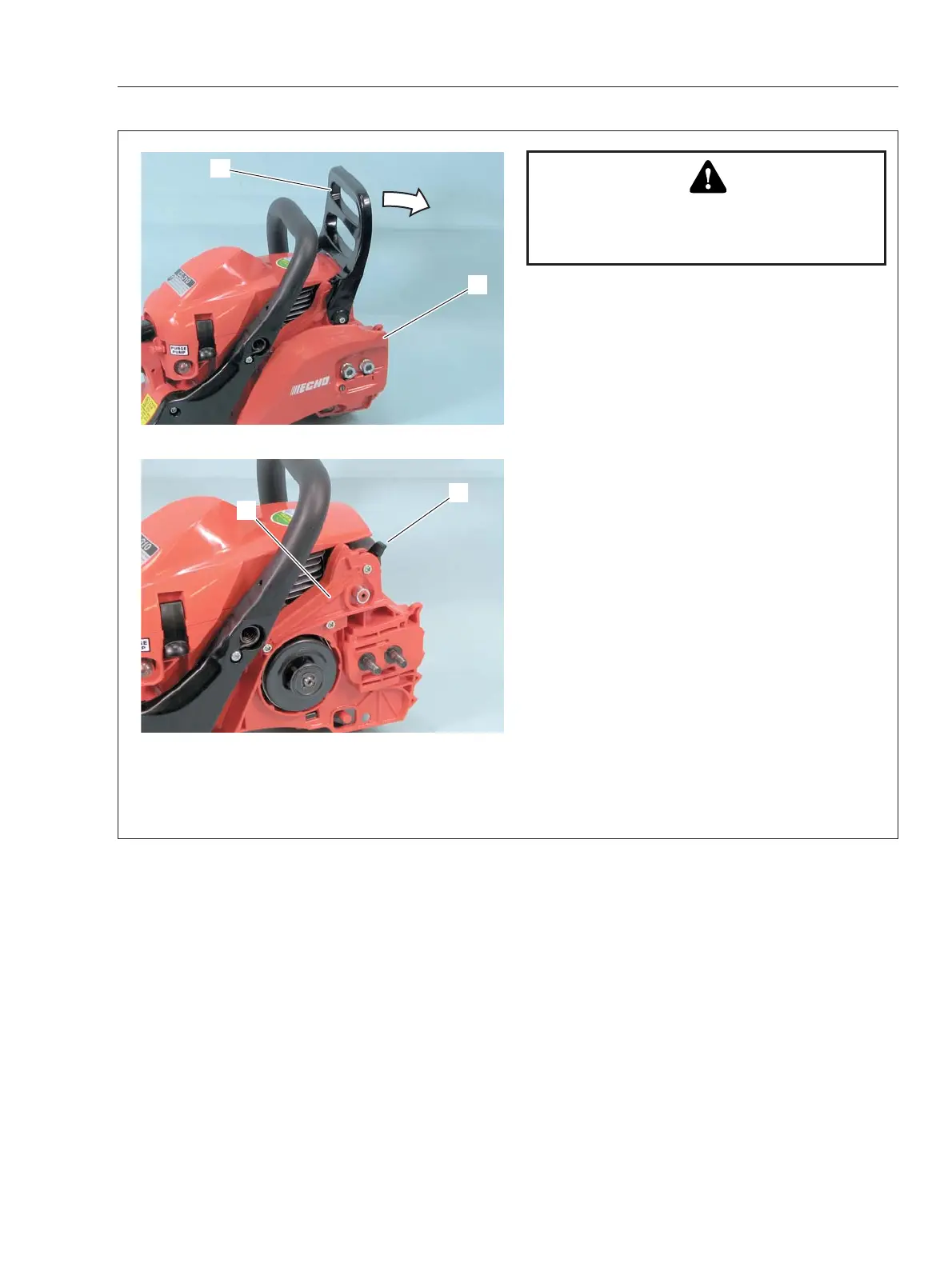

6-1 Disassembling chain brake
WARNING DANGER
Wear eye protection and safety gloves when
disassembling or assembling chain brake to
protect eye and hand from injury.
1. Move brake lever (A) to chain brake engaging
position.
2. Remove sprocket guard (B) and brake lever.
NOTE
: Make sure that lever (C) is in engaging po-
sition before removing brake cover (D), otherwise
compression spring may jump out.
3. Loosen three screws securing brake cover (D)
and remove brake cover.
4. Inspect all the brake parts for damage. Replace
them as required.
A
B
C
D
