REAR HANDLE AND CONTROL SYSTEM
CS-310
64
9-2 Replacing cushions
1. Remove starter assembly from the unit (Refer to
“2-1 Disassembling starter assembly”).
2. Remove front handle and rear handle from the
unit (Refer to “7-3 Inspecting oil line”).
3. Inspect cushions for cracking or wear. If dam-
aged, replace with new cushions as follows.

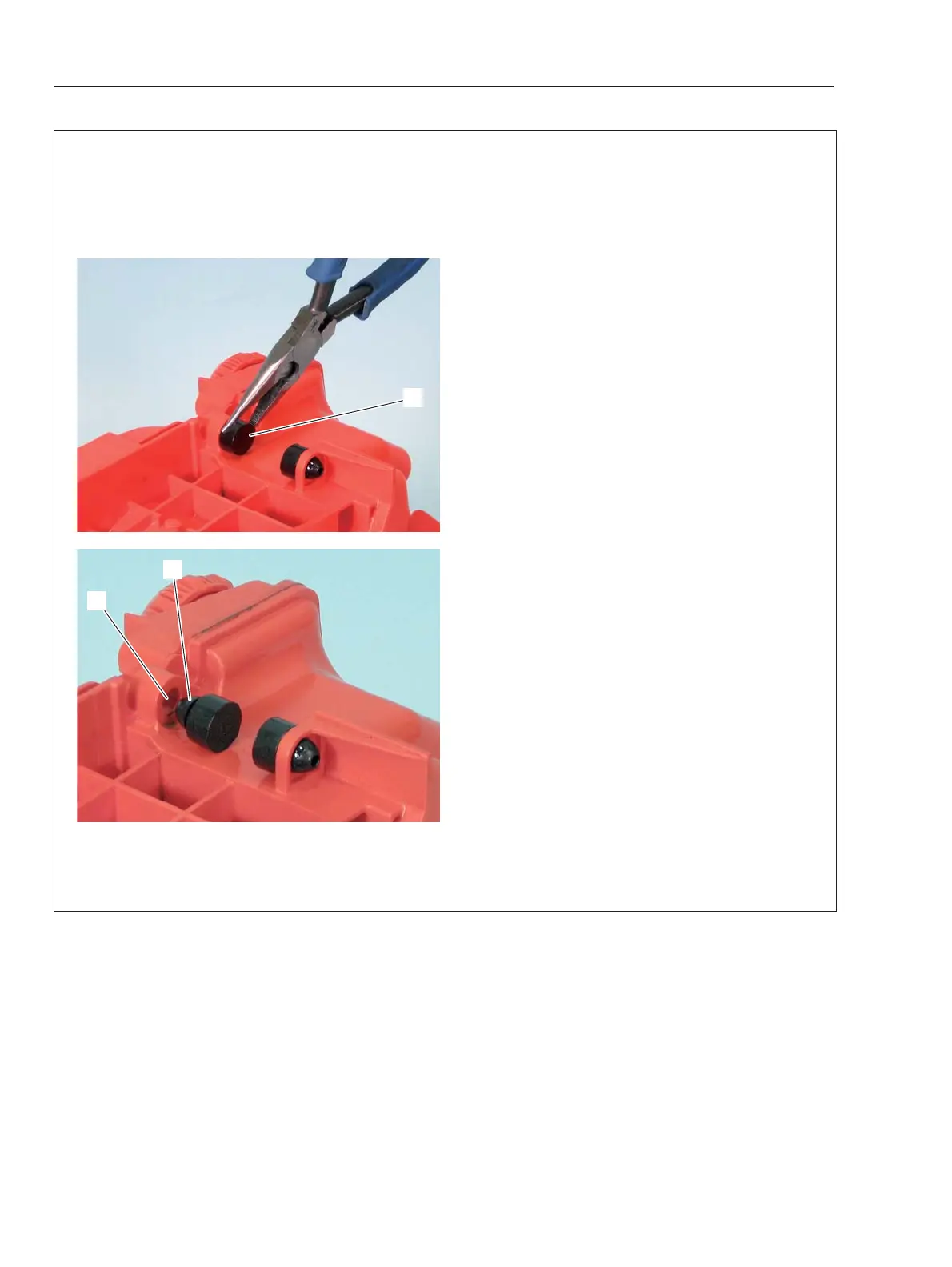

4. Remove cushion (A) with needlenose pliers from
bottom of the unit.
5. Apply lithium-based grease on outer surface (a)
of cushion toe, then install cushion by pushing into
the hole (B).
6. Reassemble front handle and rear handle to the
unit. Reassemble all related parts.
