Echo CS-310 Service Manual

STARTER SYSTEM
CS-310
9

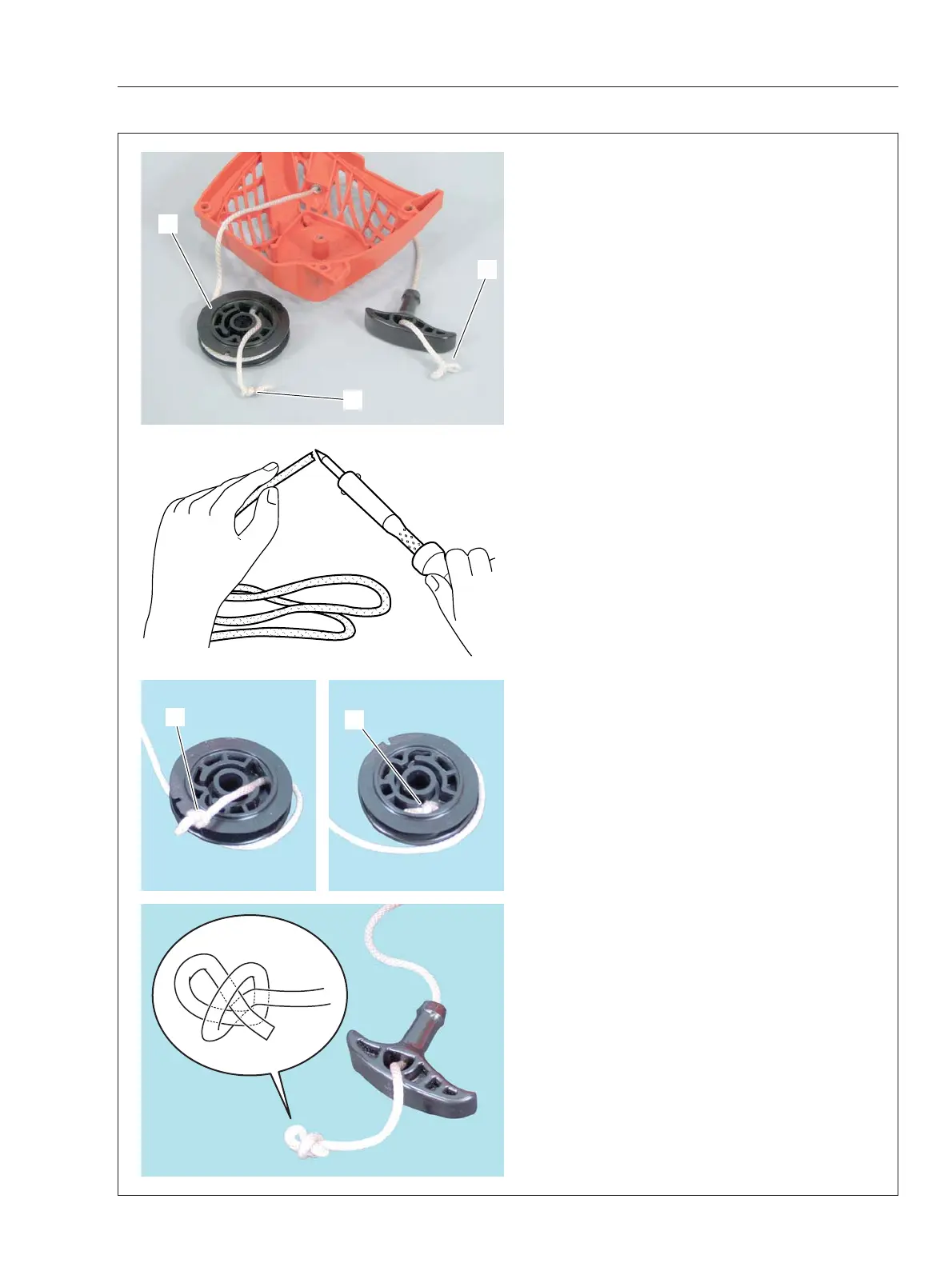

2-2 Replacing starter rope
1. Pull out and untie knot (A).
2. Pull knot (B) to remove rope from rope reel (C).
4. Make a knot (D) at end of starter rope and pass
the rope through hole of rope reel, then press the
knot (D) into recess as shown.
3. When installing a new starter rope, singe both
ends of the rope to prevent fraying.
5. Pass the other end of starter rope through start-
er case, then pass starter rope through starter grip
and make a knot as shown.
6. Tighten knot. Push knot into recess of starter
grip.
4K287
A
B
C
D
D
