SAW CHAIN LUBRICATION SYSTEM
CS-310
48

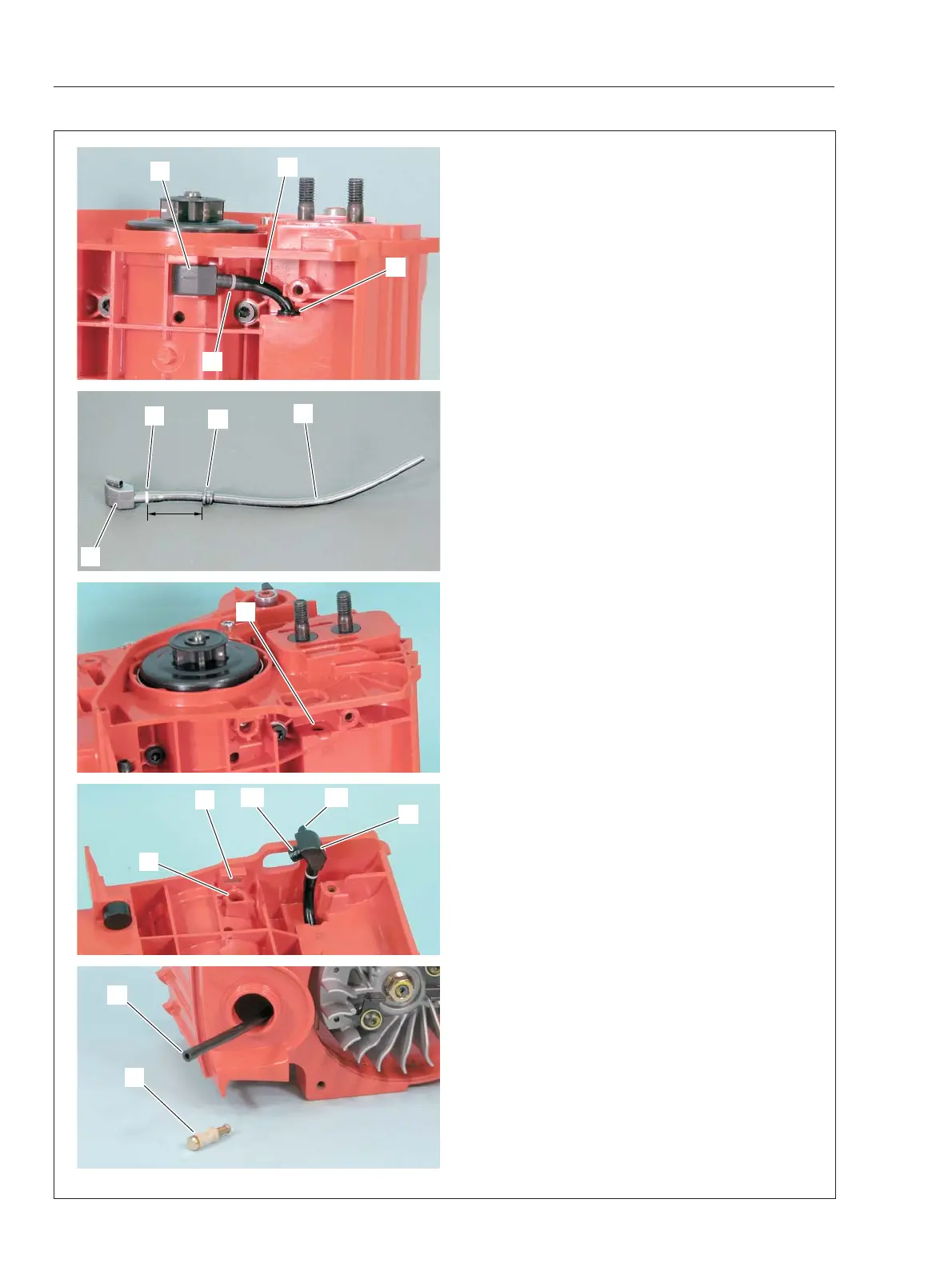

7-4 Replacing oil line and grommet
1. Pull out oil strainer from oil tank (Refer to “7-1
Inspecting oil cap and strainer”) and remove oil
strainer from oil line.
2. Remove oil grommet (A) from engine cover.
3. Pull out oil line (B) from engine cover, together
with grommet (C), joint pipe (D) and oil grommet
(A).
4. Insert new oil line (B) to new grommet (C).
5. Set new joint pipe (D) and new oil grommet (A)
as shown.
6. Assemble grommet (C) in grommet hole (E) of
engine cover.
7. Assemble oil grommet (A) on engine cover.
NOTE:
In order to assemble oil grommet easily, in-
sert oil outlet (a1) in auto-oiler hole (F). Then push
tab (a2) into square hole (G).
8. Pull out the other end (b) of oil line as shown.
9. Install oil strainer (H) to the other end (b) of oil
line.
10. Put oil strainer and oil line in oil tank. Make
sure oil strainer can move freely in oil tank.
NOTE:
If oil strainer cannot move freely in oil tank,
chain oil may not be supplied properly.
A
b
B
D
B
C
D
C
F
E
G
A
35mm
(1.4in)
A
a1 a2
H
