GUIDE BAR MOUNTING SYSTEM
CS-310
67
10-2 Replacing guide bar stud

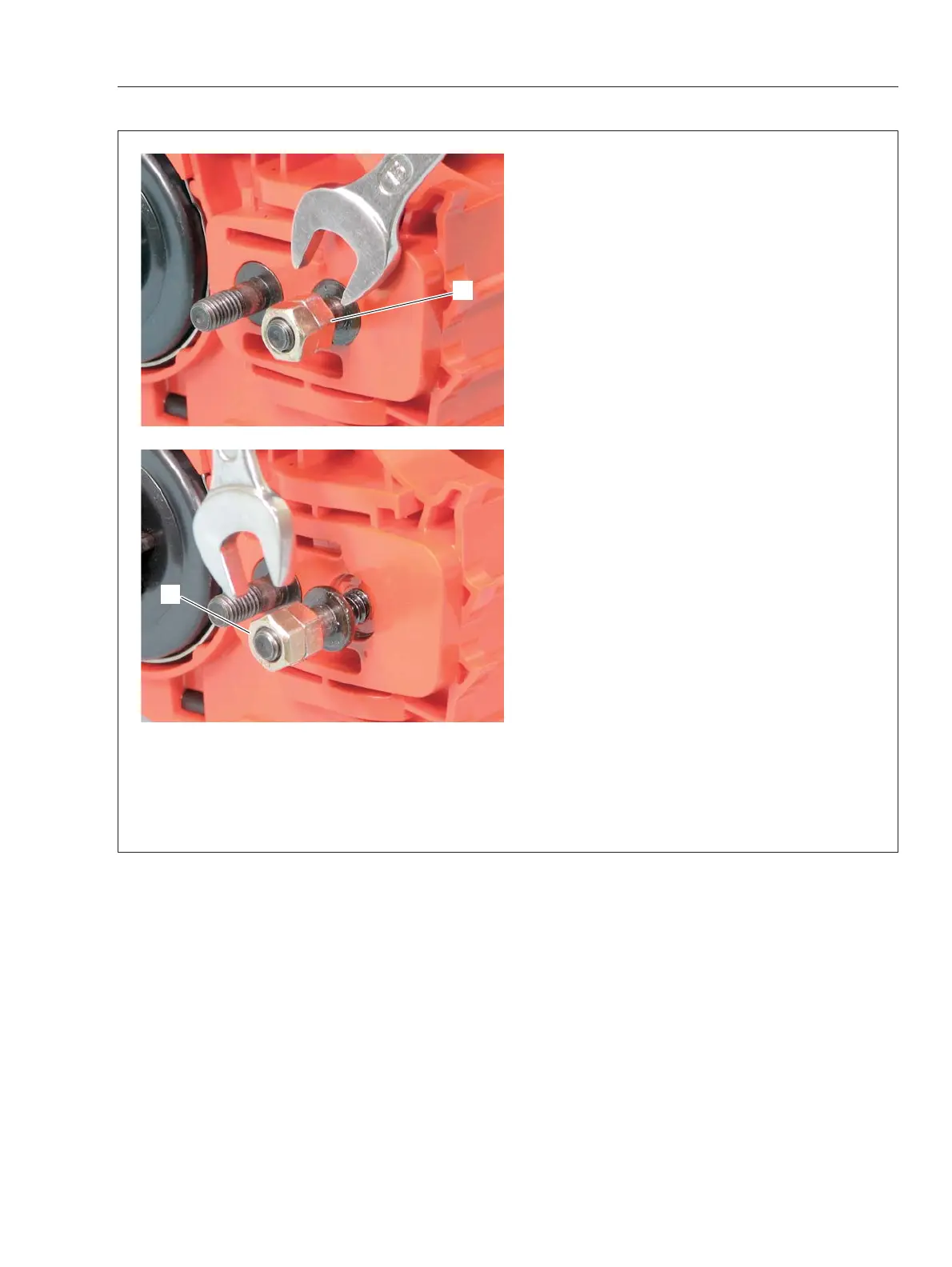

1. Install two nuts on defective stud and tighten
them against each other.
2. Turn nut (A) counterclockwise to remove stud.
NOTE:
If it is hard to remove or broken stud is too
short for tightening two nuts, hold defective stud
by vise and turn the chain saw body counterclock-
wise, or use a suitable stud remover.
3. Install two nuts on new stud and tighten them
against each other.
NOTE:
Apply a small amount of thread locking
sealant in the thread hole (locktite #675 or equiva-
lent).
4. Turn nut (B) clockwise to install stud.
A
B
