Echo CS-310

FUEL SYSTEM
CS-310
22

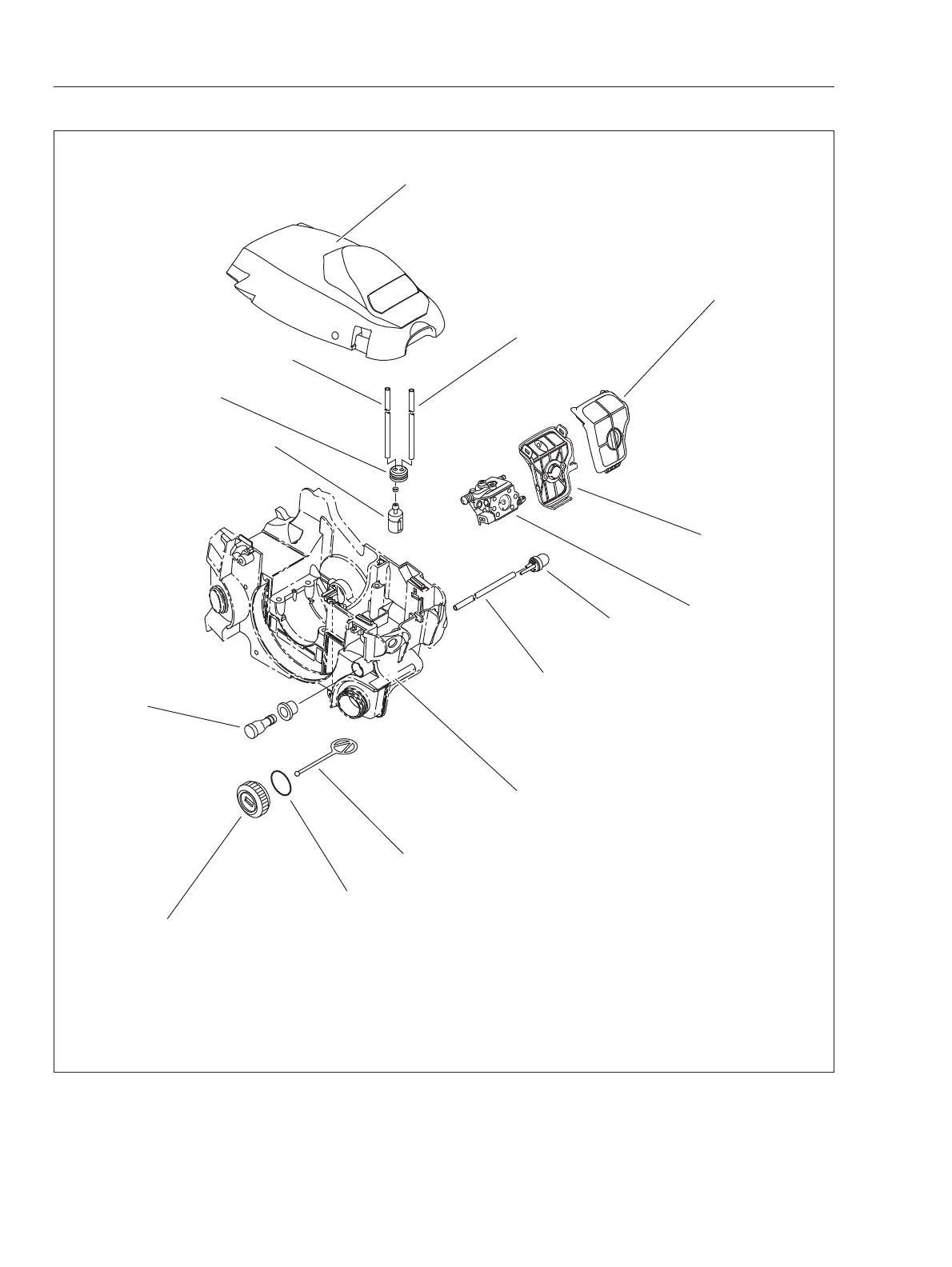

4 FUEL SYSTEM
( A ) Fuel cap
( B ) O-ring
( C ) Connector
( D ) Fuel tank
( E ) Fuel tank vent
( F ) Fuel strainer
( G ) Fuel line
( H ) Fuel return line
( J ) Grommet
( K ) Air fi lter
( L ) Cleaner case
( M ) Carburetor
( N ) Purge bulb
( O ) Purge line
( P ) Cylinder cover
(L)
(D)
(E)
(O)
(A)
(B)
(F)
(C)
(N)
(M)
(G)
(H)
(J)
(P)
(K)
