STARTER SYSTEM
CS-310
11

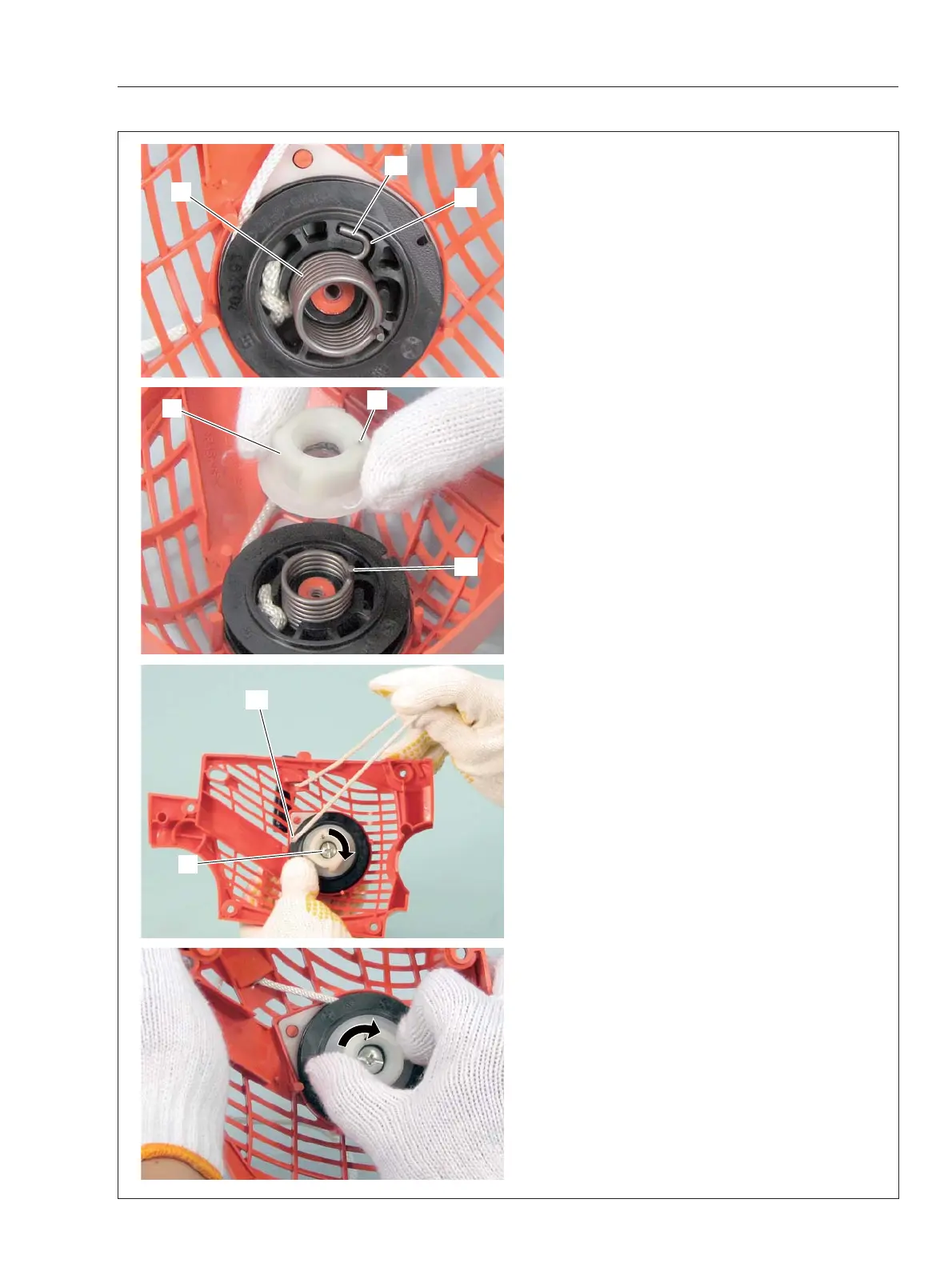

5. Install power spring (G), engaging hook (g1)
with rope reel groove (f2).
6. Install pawl catcher (H), engaging hole (h) with
power spring top end hook (g2).
7. Reinstall screw (J) on starter post.
8. Pull out starter rope inside starter case. Rotate
rope reel clockwise several turns with starter rope
hooked at notch (f3) as shown. Hold rope reel to
prevent it from unwinding and pull out starter grip
to take the rope slack.
9. Pull starter several times to check rewind spring
tension. If starter is not rewinding fully, increase
spring tension by rotating rope reel one more turn
clockwise following above step (8).
10. Pull out starter rope all the way, and check that
rope reel can be rotated an additional half or more
turn clockwise as shown, to prevent rewind spring
from breaking.
11. If rope reel can not be turned clockwise, reduce
tension by rotating rope reel counterclockwise one
turn with starter rope hooked at notch (f3).
2-3 Assembling starter (continued)
H
G
g1
f2
h
g2
J
f3
To Next Page
