Echo PAS-225 User Manual

ASSEMBLY PAS-225 VP
18 X7732274200
© 5/2017 ECHO Inc.
Shield with cutoff knife is for use with the Nylon Line Head only.
Install shield without cutoff knife when using plastic or metal
blades, or serious injury may result.

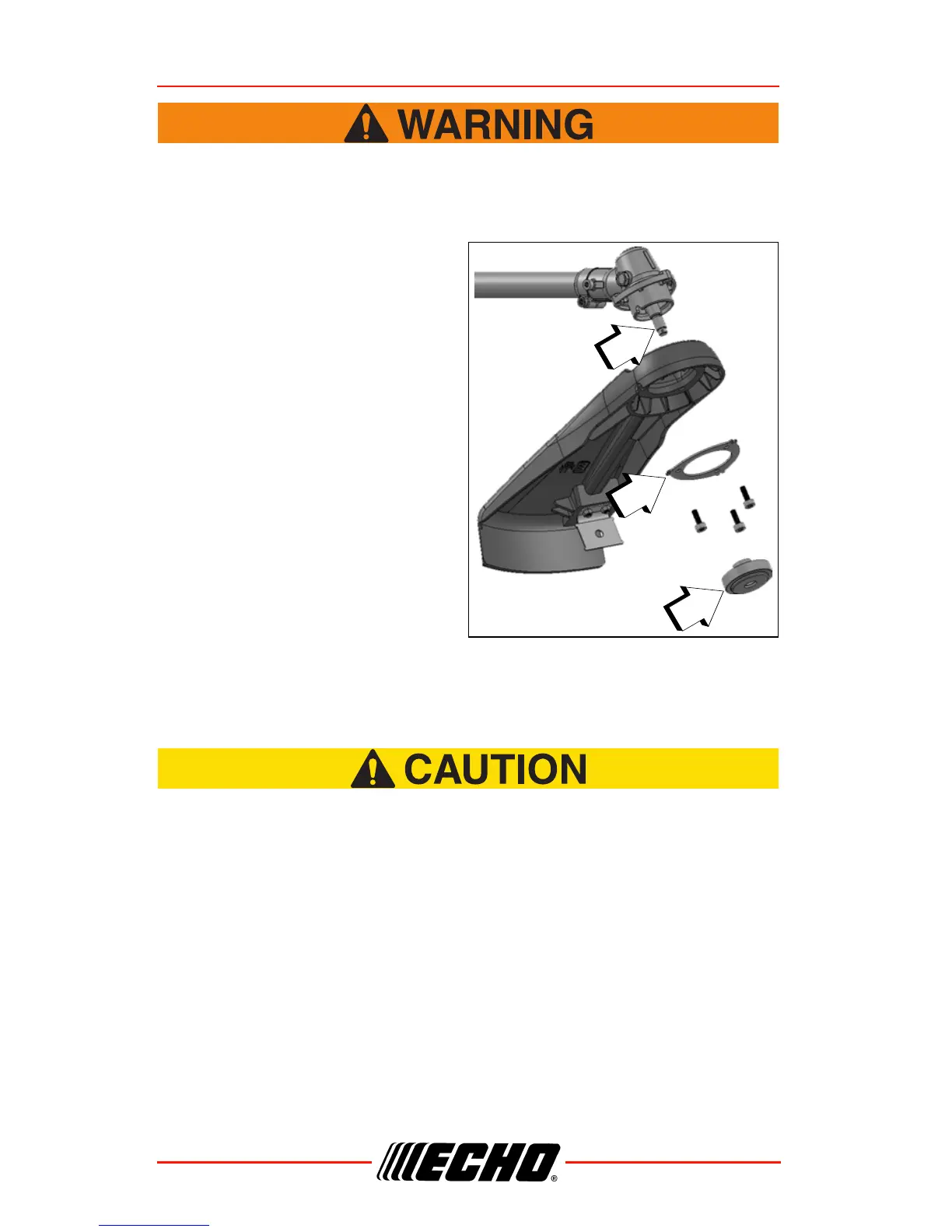

1. Place the shield on the bottom
of the bearing housing flange.
2. Place shield plate (B) on shield,
align holes. Install three (3)
screws from bottom through
plate and shield into gear case.
3. Assemble adapter plate (C)
onto PTO shaft (A).
Nylon Line Head Installation
Wear Gloves or personal injury may result:
◆ Cutoff knife is sharp.
◆ Gearcase and surrounding area may be hot.
Parts Required: Nylon Line Head.
A
B
C

Echo PAS-225 Specifications

General

Engine Displacement	21.2 cc
Engine Type	2-stroke
Starting System	Recoil
Shaft Type	Straight
Handle Type	Loop
Fuel Capacity	14.9 fl. oz
Shaft Length	59 inches
Warranty	5 years consumer / 2 years commercial
Power Output	0.7 kW
Dry Weight	5.1 kg
