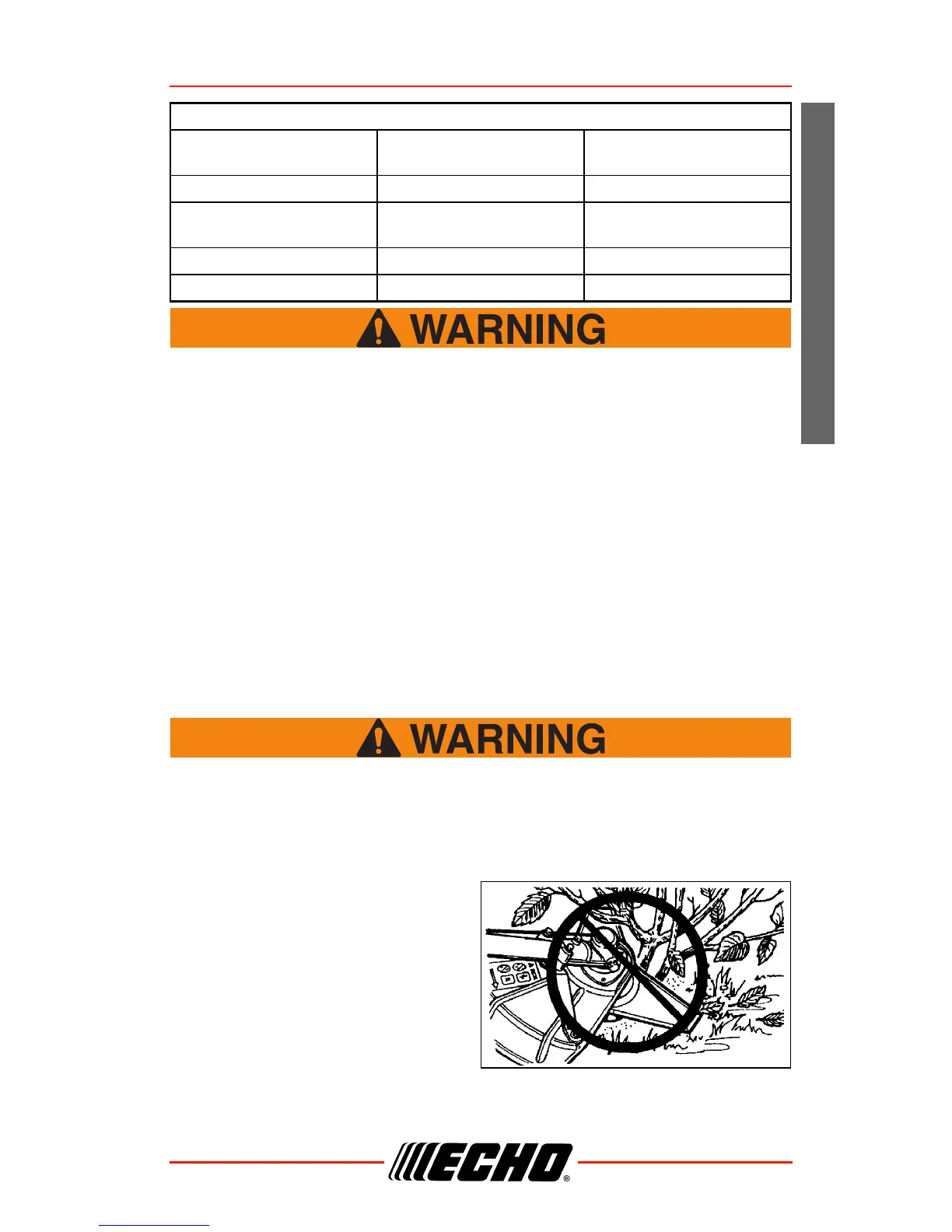

PAS-225 VP OPERATION
X7732274200 25
© 5/2017 ECHO Inc.
ENGLISH
DO NOT INSTALL BLADES ON GT (CURVED SHAFT) MODEL
TRIMMERS.
• Arbor Diameter of Upper Blade Plate must match arbor diameter of
blades.
• A new cotter pin is required each time a blade is installed.
• Brush cutters over 7.5 kg (16.5 lbs.) dry weight (weight w/o fuel) require a
double shoulder harness.
Note: The Barrier Bar is used to restrict rearward movement
of the unit. The Barrier Bar is NOT A HANDLE and
should not be gripped when using or carrying the unit.
Blade Selection
The type of Blade used MUST be matched to the type and size
of material cut. An improper or dull blade can cause serious per-
sonal injury. Blades MUST be sharp. Dull blades increase the
chance of kick-out and injury to yourself and bystanders.
Plastic/Nylon Grass/Weed Blades
may be used where ever the nylon
line head is used. DO NOT use this
blade for heavy weeds or brush.
Harness Harness Harness
Upper Plate & Flat
Washer
Upper Plate & Glide Cup
Upper/Lower Blade
Plates
Hex Nut Hex Nut Hex Nut
New Cotter Pin New Cotter Pin New Cotter Pin
PARTS REQUIRED FOR THESE BLADES:
Pro Maxi-Cut Grass/
Weed Blade
Rigid Plastic Tri-Cut
Grass/Weed Blade
Metal Blade
To Next Page
