PAS-225 VP TROUBLESHOOTING
X7732274200 45
© 5/2017 ECHO Inc.
ENGLISH

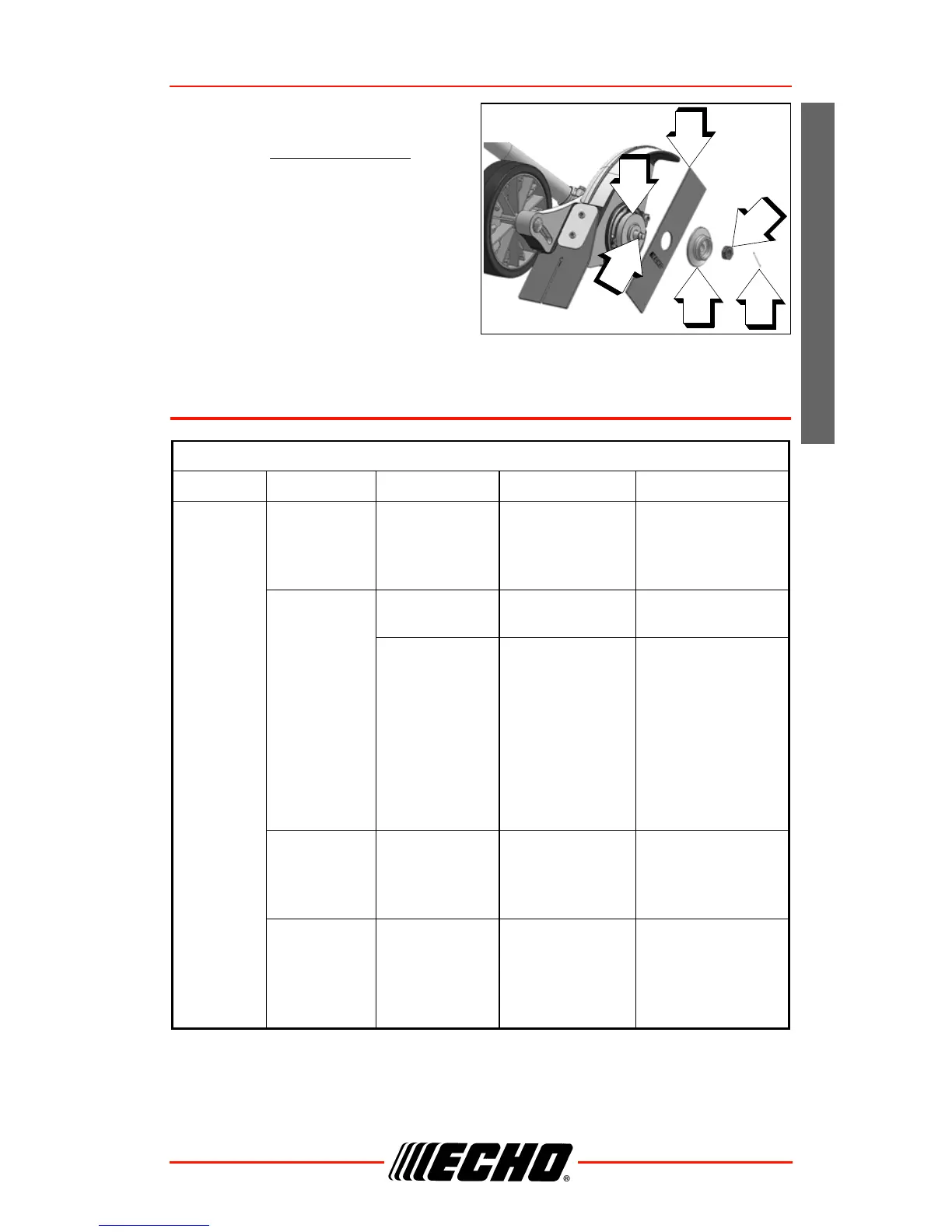

5. Install outer adapter (E) and nut
(D). Tighten nut (D) firmly,
turning counterclockwise.
Note: Never reuse old split pin.
6. Install new split pin (A) to
secure nut, and bend both legs
of pin counterclockwise around
PTO shaft (C).
TROUBLESHOOTING
ENGINE PROBLEM TROUBLESHOOTING CHART
Problem Check Status Cause Remedy
Engine
starts
hard
or
Engine
does not
start
Fuel at
carburetor
No fuel at
carburetor
Fuel strainer or
fuel line
obstructed
Clean or replace
See your Echo
dealer
Fuel at
cylinder
No fuel at
cylinder
Carburetor
See your Echo
dealer
Muffler wet
with fuel
Fuel mixture
too rich
OPEN choke
Clean or replace
air filter
Adjust carburetor
See your Echo
dealer
Spark at
end of plug
wire
No spark
Stop switch
OFF - Electrical
problem - Inter-
lock switch
Turn switch to ON
See your Echo
dealer
Spark at
plug
No spark
Incorrect gap -
Covered with
carbon - Fouled
with fuel - Plug
defective
Adjust to 0.65mm
(0.026 in.)
Clean or replace
plug
D
C
B
A
E
F

Echo PAS-225 Specifications

General

Engine Displacement	21.2 cc
Engine Type	2-stroke
Starting System	Recoil
Shaft Type	Straight
Handle Type	Loop
Fuel Capacity	14.9 fl. oz
Shaft Length	59 inches
Warranty	5 years consumer / 2 years commercial
Power Output	0.7 kW
Dry Weight	5.1 kg
