Echo PAS-225 User Manual

PAS-225 VP MAINTENANCE
X7732274200 41
© 5/2017 ECHO Inc.
ENGLISH

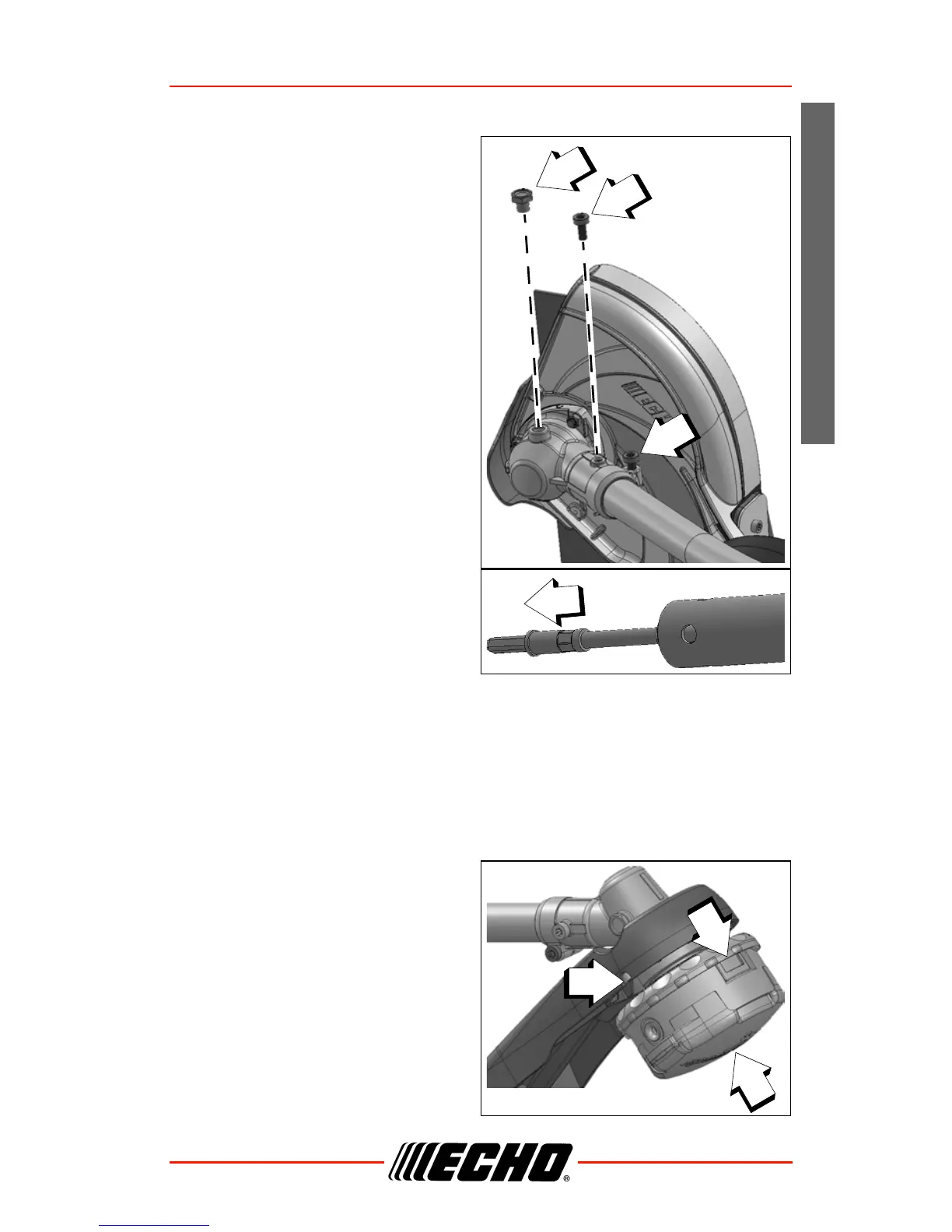

Drive Shaft (Lower)
1. Loosen screw(s) (B) and
remove locating screw (C). Pull
gear case and shield from drive
shaft housing.
2. Pull flexible cable from the drive
shaft housing, wipe clean and
apply 15 ml (0.5 oz.) of grease.
3. Slide the flexible cable back in
the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and shield assembly.
Nylon Line Head Disassembly Instructions
Note: For normal use, Speed Feed
®
head disassembly is not neces-
sary. However, if circumstances require disassembly, follow
these instructions.
1. Press top of locking tabs (A) on
both sides of Speed Feed
®
head to release cover (B) from
eyelet carrier (C).
2. Remove cover from eyelet
carrier.
B
C
A
C
B
A

Echo PAS-225 Specifications

General

Engine Displacement	21.2 cc
Engine Type	2-stroke
Starting System	Recoil
Shaft Type	Straight
Handle Type	Loop
Fuel Capacity	14.9 fl. oz
Shaft Length	59 inches
Warranty	5 years consumer / 2 years commercial
Power Output	0.7 kW
Dry Weight	5.1 kg
