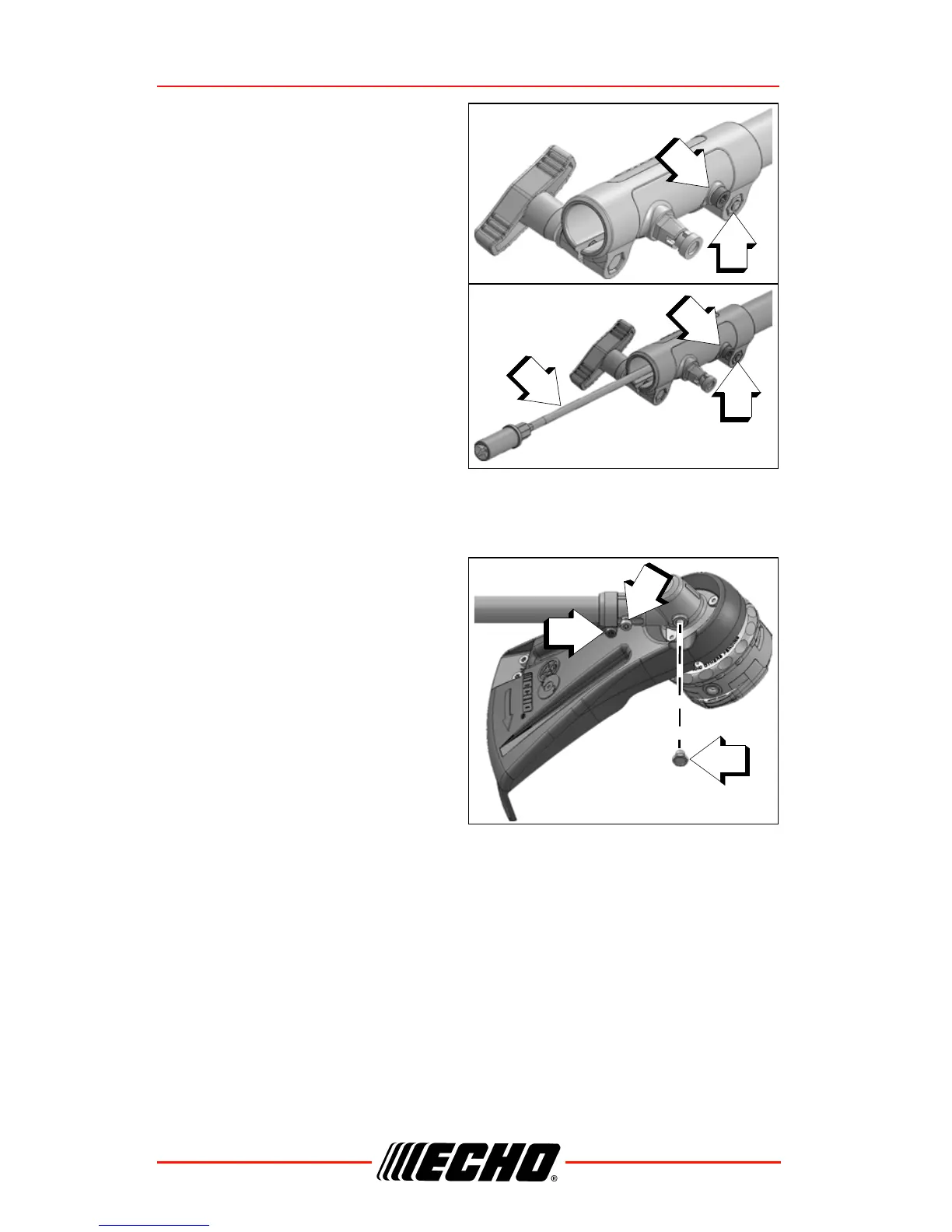

4. Remove coupler from upper
drive shaft assembly by loosen-
ing clamping screw (C) and
removing set screw (D).
5. Remove upper flex cable (E),
wipe clean, and apply a thin
coating of 15 ml (0.5 oz.) of
grease.
6. Install cable. Make sure that the
flex cable fully engages into the
clutch square drive socket.
7. Slide coupler on upper drive
shaft until fully seated, and
align set screw hole in coupling with hole in upper drive shaft.
8. Install and tighten set screw (D), and tighten clamping screw (C).
Gear Housing
1. Clean all loose debris from gear
case.
2. Remove plug (A) and check
level of grease.
3. Add grease if necessary. DO
NOT over-fill.
C
D
E
C
D
A
B
C

Echo PAS-225 Specifications

General

Engine Displacement	21.2 cc
Engine Type	2-stroke
Starting System	Recoil
Shaft Type	Straight
Handle Type	Loop
Fuel Capacity	14.9 fl. oz
Shaft Length	59 inches
Warranty	5 years consumer / 2 years commercial
Power Output	0.7 kW
Dry Weight	5.1 kg
