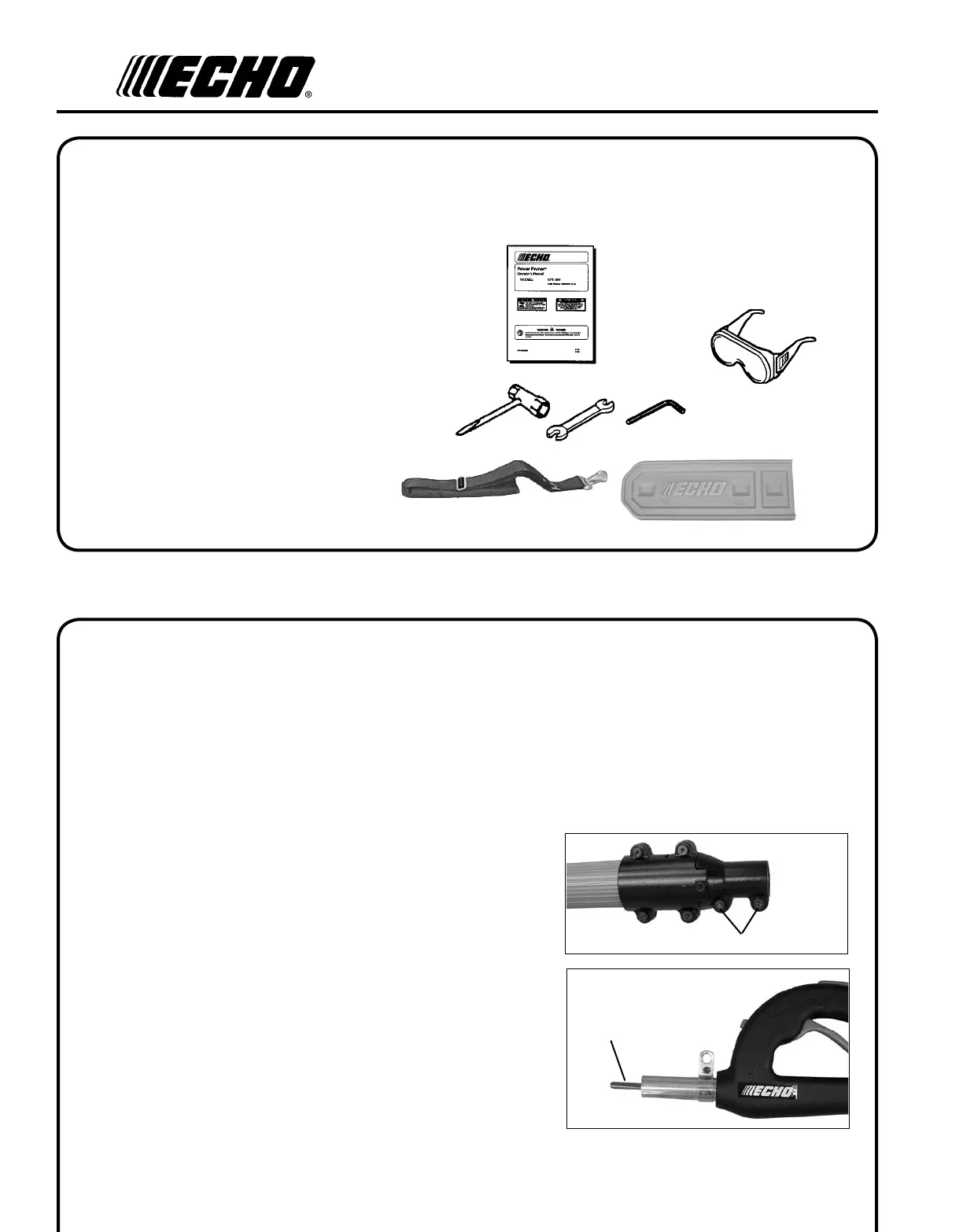

Due to packaging restriction the ECHO product you have purchased requires some assembly.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
___ Power Head
___ Handle Shaft Assembly
___ Drive Shaft Assembly
___ Cutting Attachment W/ Guide Bar and Saw Chain
___ Operator's Manual
___ 10x19 T-Wrench
___ 4mm Hex Wrench
___ M8x10 Spanner
___ Safety Glasses
___ Shoulder Harness
___ Guide Bar Cover
as s e m b l y
Parts Required: Power Head, Handle Shaft Assembly, Drive Shaft
Assembly, Cutting Attachment
h a n d l e s h a f t / d r I v e s h a f t
1. Remove protective caps from handle shaft assembly.
2. Loosen clamping bolts (A) on drive shaft.
3. Pull exible drive shaft coupler (B) 2 -3 inches out of handle shaft.
