Po w e r Pr u n e r
TM
oP e r a T o r 's Ma n u a l
13
WARNING
Saw Chain is sharp! Always wear gloves when handling assembly,
otherwise serious personal injury may result.

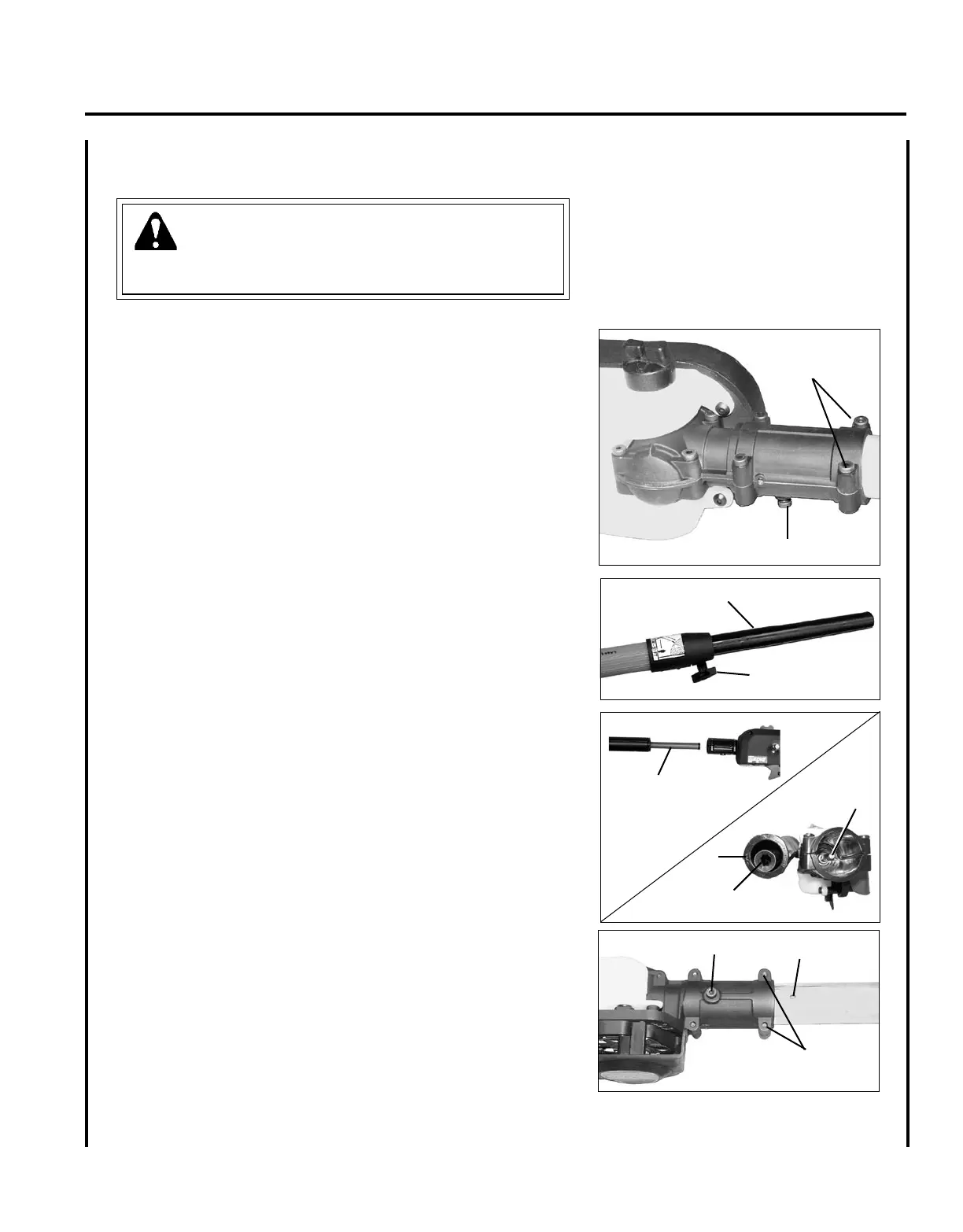

1. Loosen the two (2) screws (C) and remove locator screw (D) on
cutting attachment.
2. Loosen clamp knob (E) turning counter clockwise.
3. Pull upper tube (F) out of berglass lower tube 127-152 mm (5-6
in.), then slide (F) back into berglass lower tube exposing inner
drive shaft (G). Align and join star shaped drive end of inner drive
shaft (G) with cutting attachment shaft (H).
4. Align ridges (J) on upper tube with seams in cutting attachment.
5. Slide together, aligning locator screw (D) in cutting attachment
with locating hole (I) in upper tube.
6. Install locator screw (D). Tighten two (2) cutting attachment
screws (C).
7. Extend upper tube to desired length. Tighten clamp knob (E) turn-
ing clockwise.
d
c
c u t t I n g a t t a c h m e n t t o d r I v e s h a f t I n s t a l l a t I o n
c
I
G
H
G
E
F
J
d
