Eclipse EA500 - Page 37

5A34062632SBA
A
A
1
2
4
5
3
12
6
8
9
10
11
7

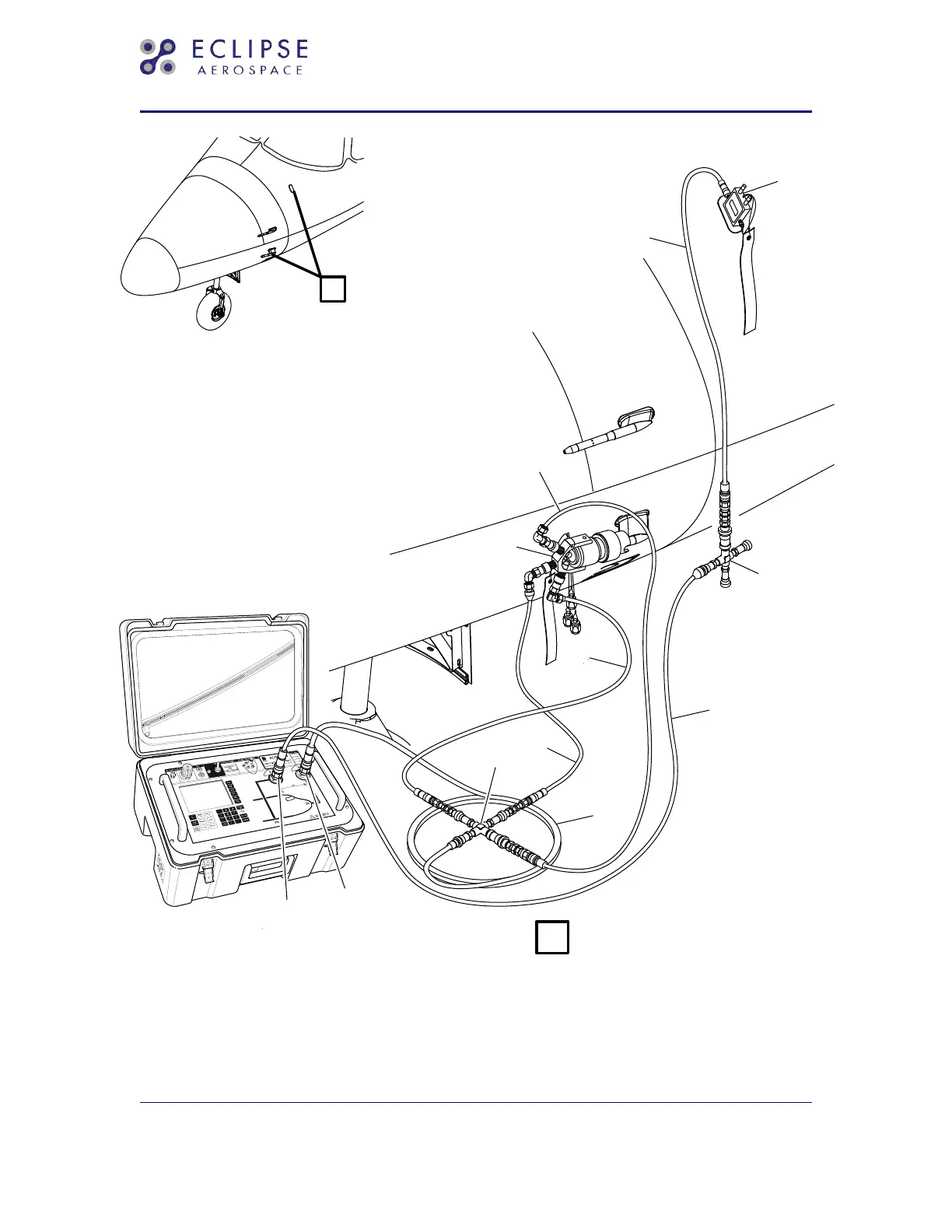

Left Pitot/Static Hose Configuration (Three Port Adapter)
Figure 501 (Sheet 1 of 1)
EA500 Aircraft Maintenance Manual — 06-117751
Temporary Revision No. 34-21
EFFECTIVITY: NOTED
34-10-00
Page 533
Sep 30/20
© 2020 Eclipse Aerospace, Inc.
