BAT-I2 USER MANUAL
19
Chapter 2
The motherboard has one USB 2.0 header supporting two USB 2.0 ports.
Additionally, some computer cases have USB 2.0 ports at the front of the case. If you
have this kind of case, use auxiliary USB 2.0 connector to connect the front-mounted
ports to the motherboard.

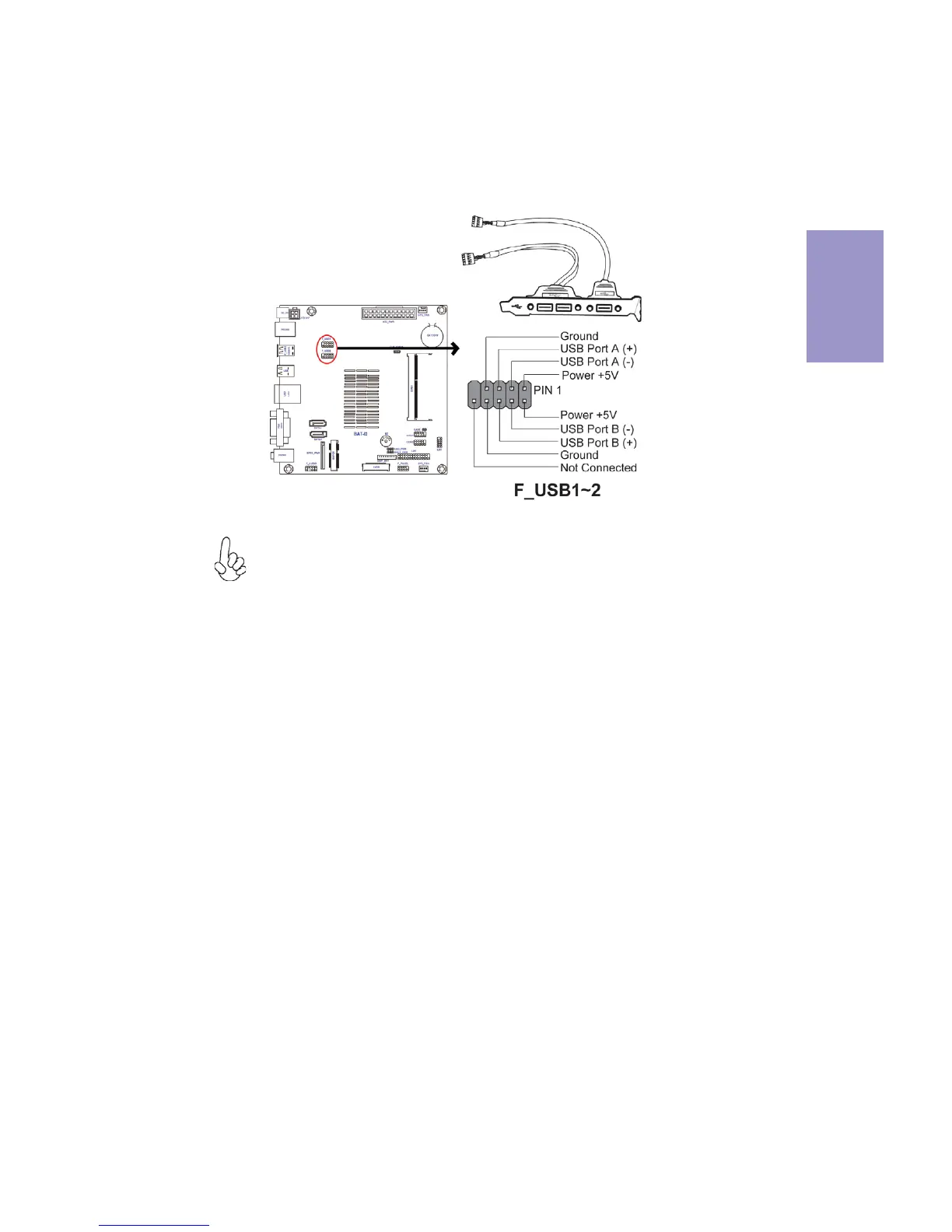

9. F_USB1~2: Front Panel USB 2.0 Headers
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
