BAT-I2 USER MANUAL
21
Chapter 2
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:

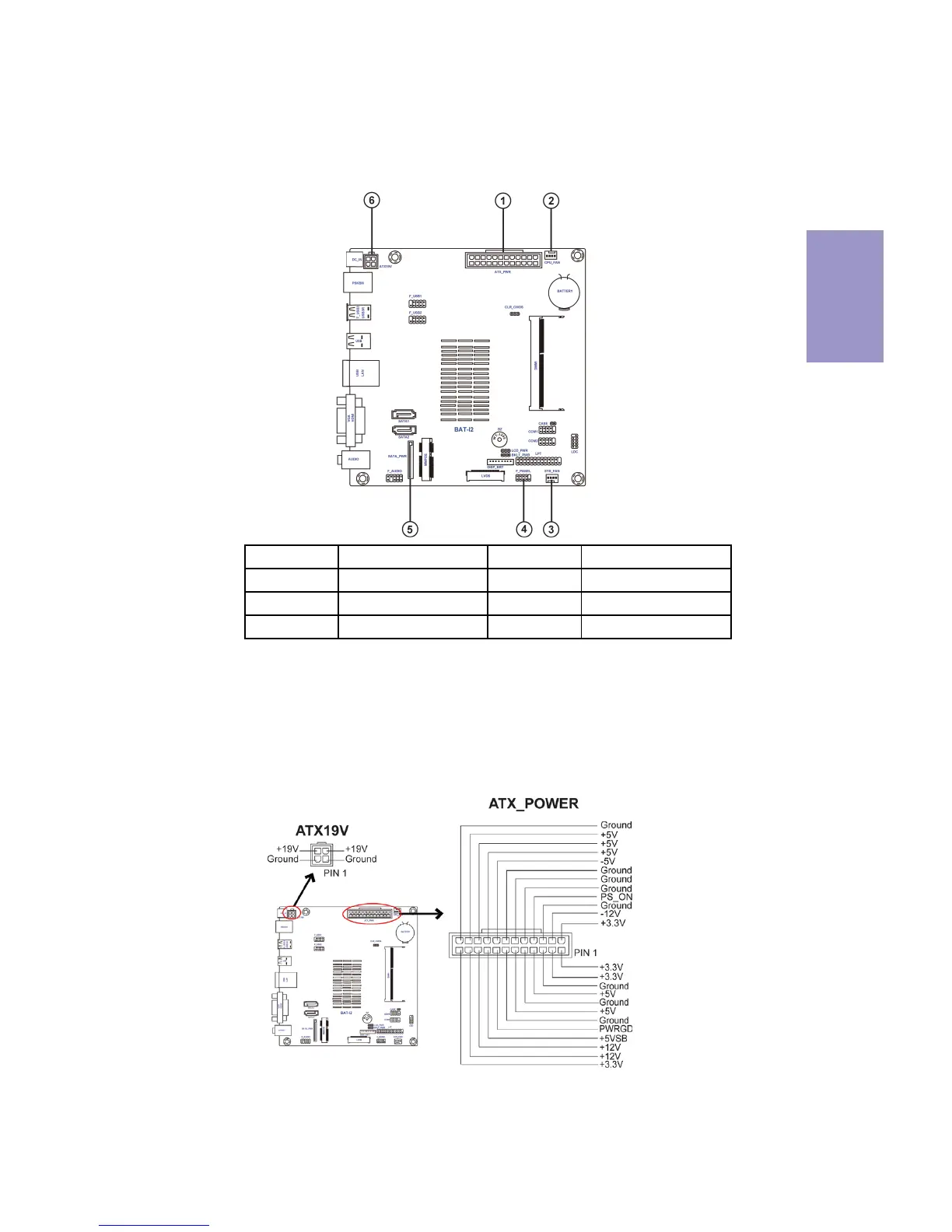

2-4-5. Connecting Case Components
No. Components No. Components
1 ATX_POWER (optional) 4 F_PANEL
2 CPU_FAN 5 SATA_PWR (optional)
3 SYS_FAN 6 ATX19V (optional)
1 & 6. ATX_POWER (ATX 24-pin Power Connector) (optional) & ATX19V
(ATX19V Power Connector) (optional)
Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX19V.
To Next Page
