BAT-I2 USER MANUAL
13
Chapter 2
2-4-3. Connecting Optional Devices

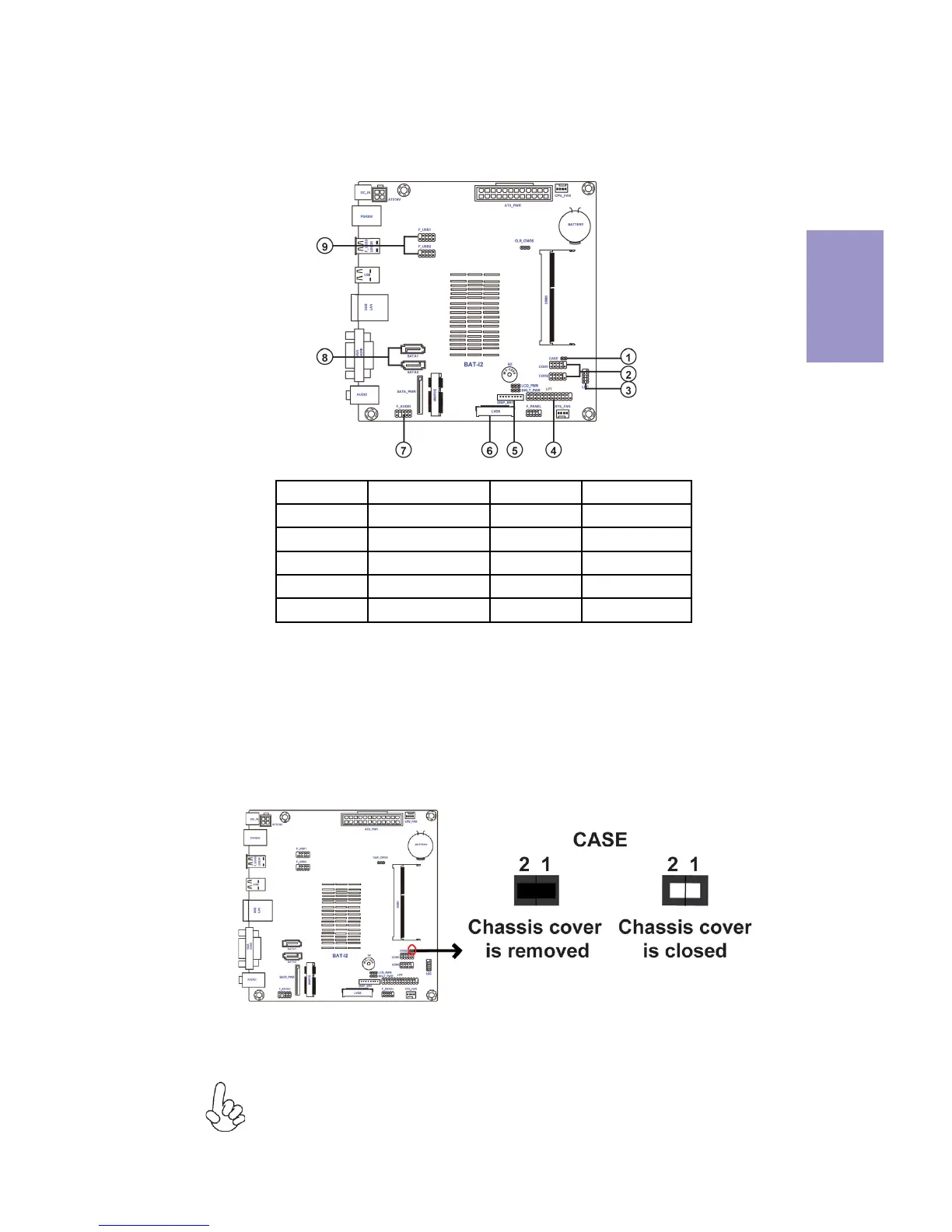

Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 CASE 6 LVDS (optional)
2COM1~27F_AUDIO
3LDC8SATA1~2
4LPT9F_USB1~2
5 DISP_BRT (optional) ~ ~
1. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This functiion needs a chassis
equipped with intrusion detection switch and needs to be enabled in BIOS.
