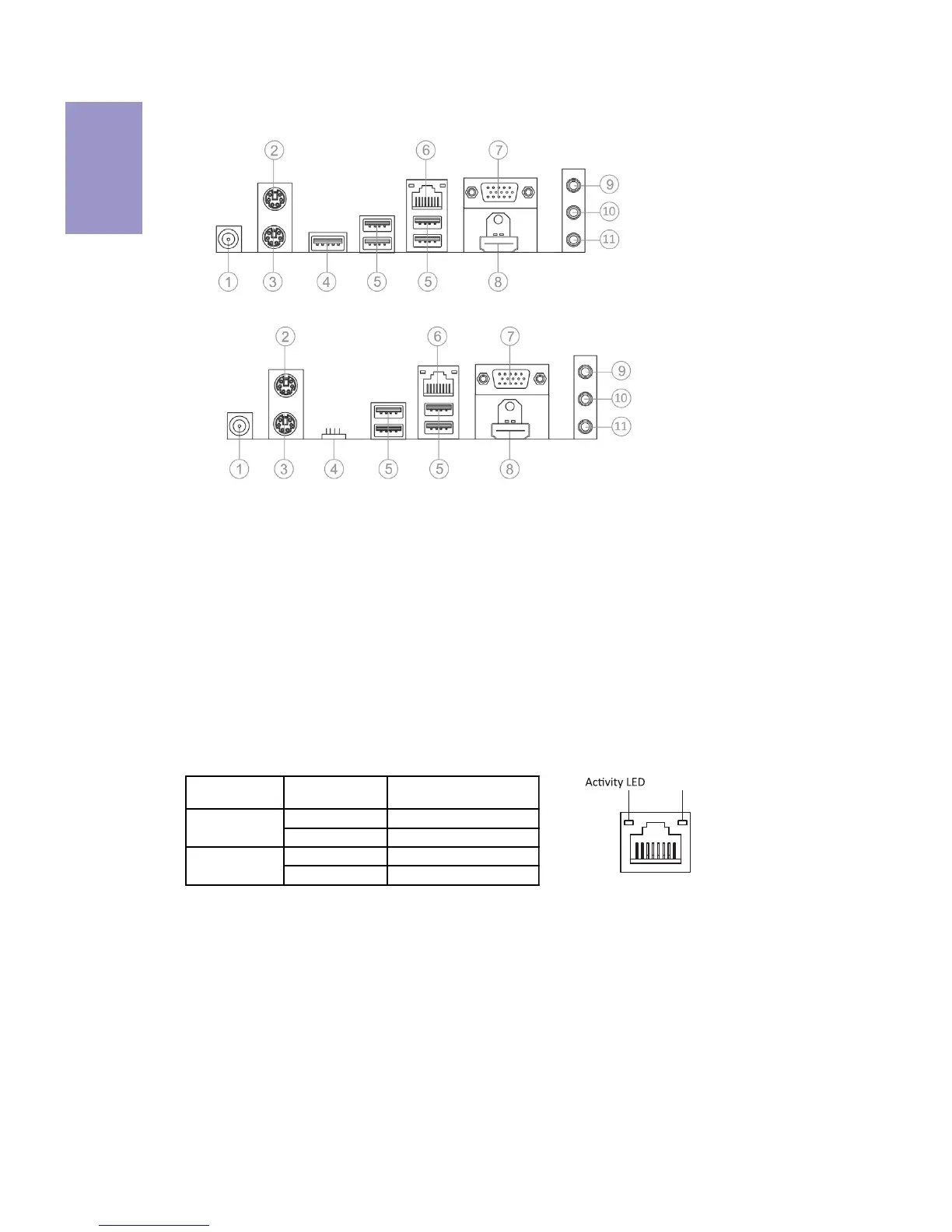

I/O Ports
2. PS/2 Mouse (green)
Use the upper PS/2 port to connect a PS/2 mouse.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
3. PS/2 Keyboard (purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
4. USB 3.0 Port (or one 5-pin USB 2.0 header supports one USB 2.0 port )
Use the USB 3.0/2.0 port to connect USB 3.0/2.0 device.
5. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
8. HDMI Port
Y
ou can connect the display device to the HDMI port.
7. VGA Port
Connect your monitor to the VGA port.
9. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
10. Line-out (lime)
It is used to connect to speakers or headphones.
11. Microphone (pink)
It is used to connect to a microphone.
1. DC_IN Port
(optional)
Connect the DC_IN port to the power adapter.
