ECS GF7050VT-M5 User Manual

20
Installing the Motherboard

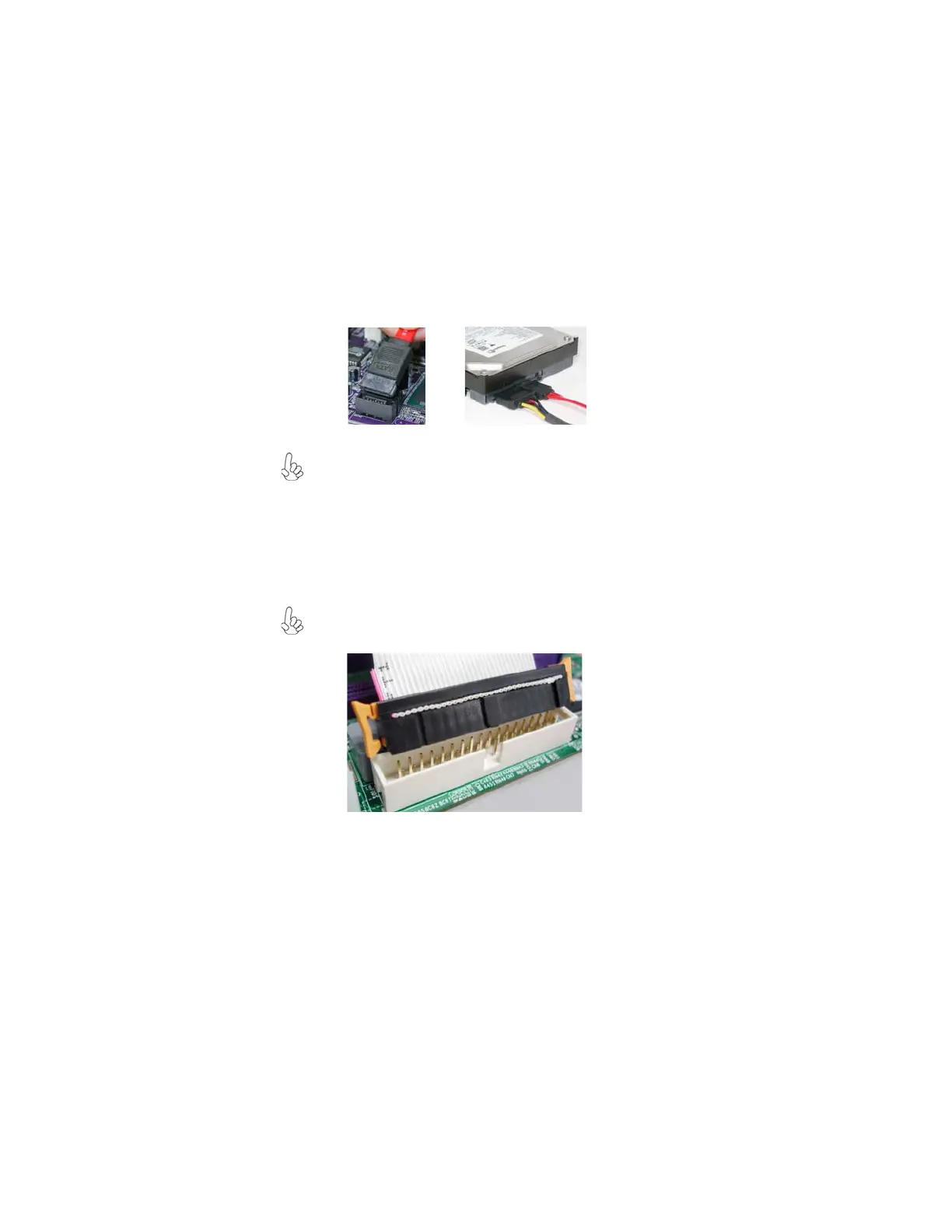

Refer to the illustration below for proper installation:
This motherboard supports the “Hot-Plug” function.
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the
other end to the power supply.
FDD: Floppy Disk Connector
This connector supports the floppy drive ribbon cable. After connecting the single
end to the onboard floppy connector, connect the remaining plugs on the other end
to the floppy drives correspondingly.
You must orient the cable connector so that the pin 1 (color) edge of
the cable corresponds to the pin 1 of the I/O port connector.
Installing a Floppy Diskette Drive

ECS GF7050VT-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Core 2 Duo, Intel Core 2 Quad
CPU fan connector	Yes
Number of SATA connectors	4
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	ROHS
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
BIOS memory size	64 Mbit
Maximum graphics card memory	256 MB
RAID levels	0, 1

Weight and Dimensions

Depth	194 mm
Width	244 mm
