ECS GF7050VT-M5 User Manual

21
Installing the Motherboard
Connecting I/O Devices

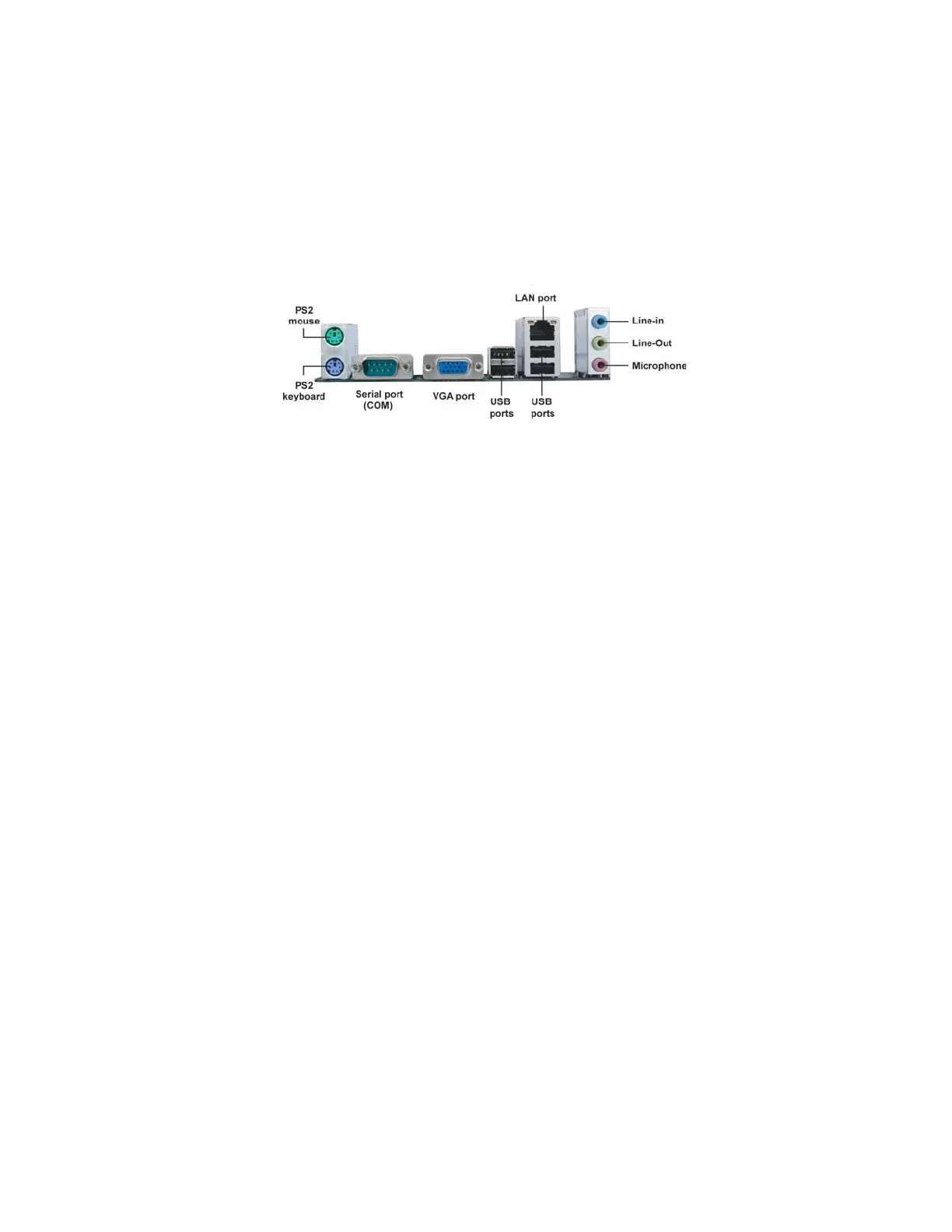

The backplane of the motherboard has the following I/O ports:
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
Serial Port Use the COM port to connect serial devices such as mouse
(COM) or fax/modems.
VGA Port Connect your monitor to the VGA port.
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
USB Ports Use the USB ports to connect USB devices.
Audio Ports
Use the three audio jacks to connect audio devices. The first
jack is for stereo line-in signal. The second jack is for stereo
line-out signal. The third jack is for microphone.

ECS GF7050VT-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Core 2 Duo, Intel Core 2 Quad
CPU fan connector	Yes
Number of SATA connectors	4
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	ROHS
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
BIOS memory size	64 Mbit
Maximum graphics card memory	256 MB
RAID levels	0, 1

Weight and Dimensions

Depth	194 mm
Width	244 mm
