ECS GF7050VT-M5 User Manual

52
NVIDIA RAID Configuration
Configuring the NVIDIA RAID BIOS
The NVIDIA RAID BIOS set up lets you choose the RAID type and which hard drives
you want to make part of the array.
Entering the RAID BIOS Setup:
1
Wait until you see the RAID software prompting you to press F10.
The RAID prompt appears as part of the system POST and boot process
prior to loading of the OS. You have a few seconds to press F10 before the
screen disappears (see Figure 1.6).

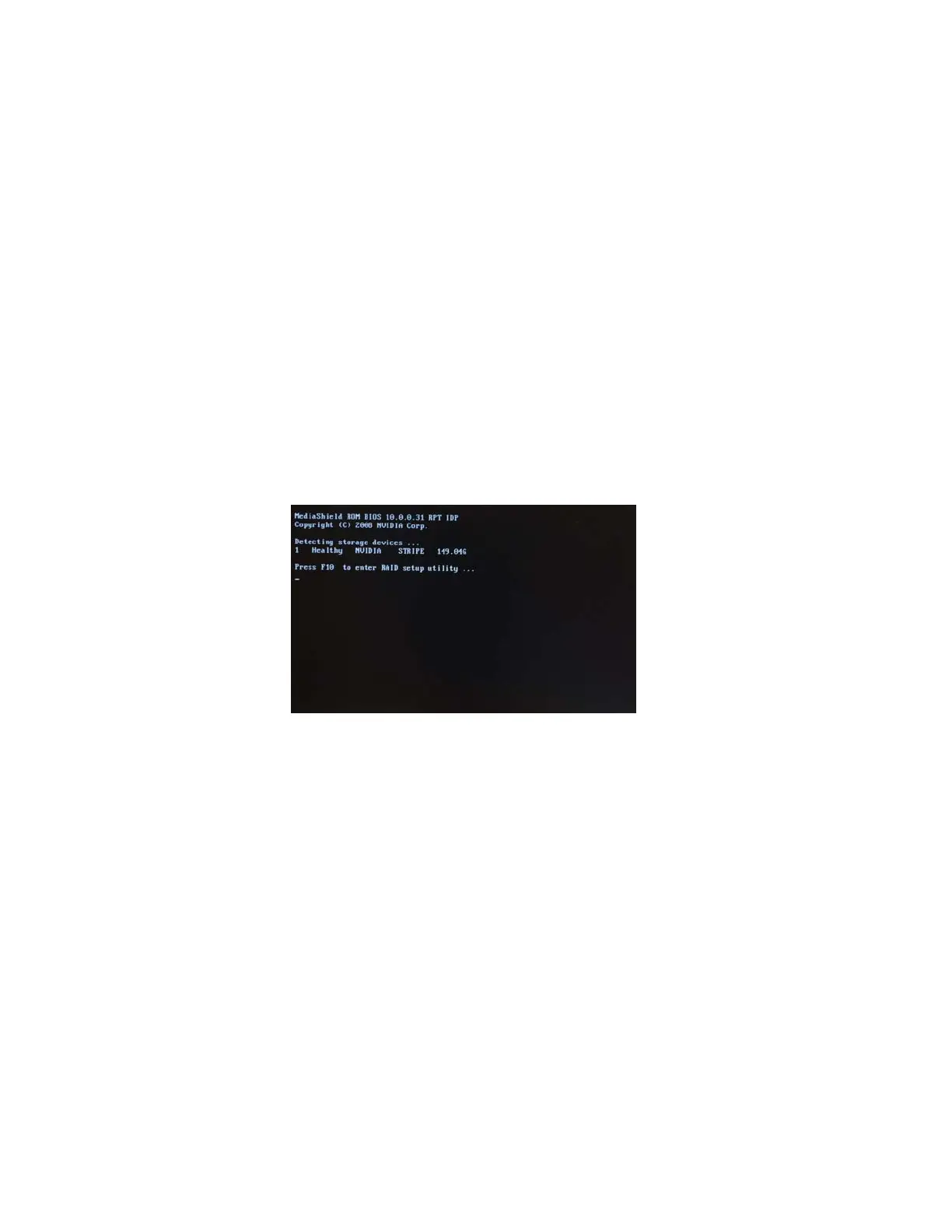

Figure 1.6
Press F10 to enter Define a New Array page.
2
5
Enter the RAID BIOS Setup by pressing F10 when prompted, and pro-
ceed to set up the NVIDIA RAID BIOS as described in the next section.
The PC reboots.
Press F10 to save the configuration and exit.4

ECS GF7050VT-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Core 2 Duo, Intel Core 2 Quad
CPU fan connector	Yes
Number of SATA connectors	4
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	ROHS
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
BIOS memory size	64 Mbit
Maximum graphics card memory	256 MB
RAID levels	0, 1

Weight and Dimensions

Depth	194 mm
Width	244 mm
