Installing the Motherboard

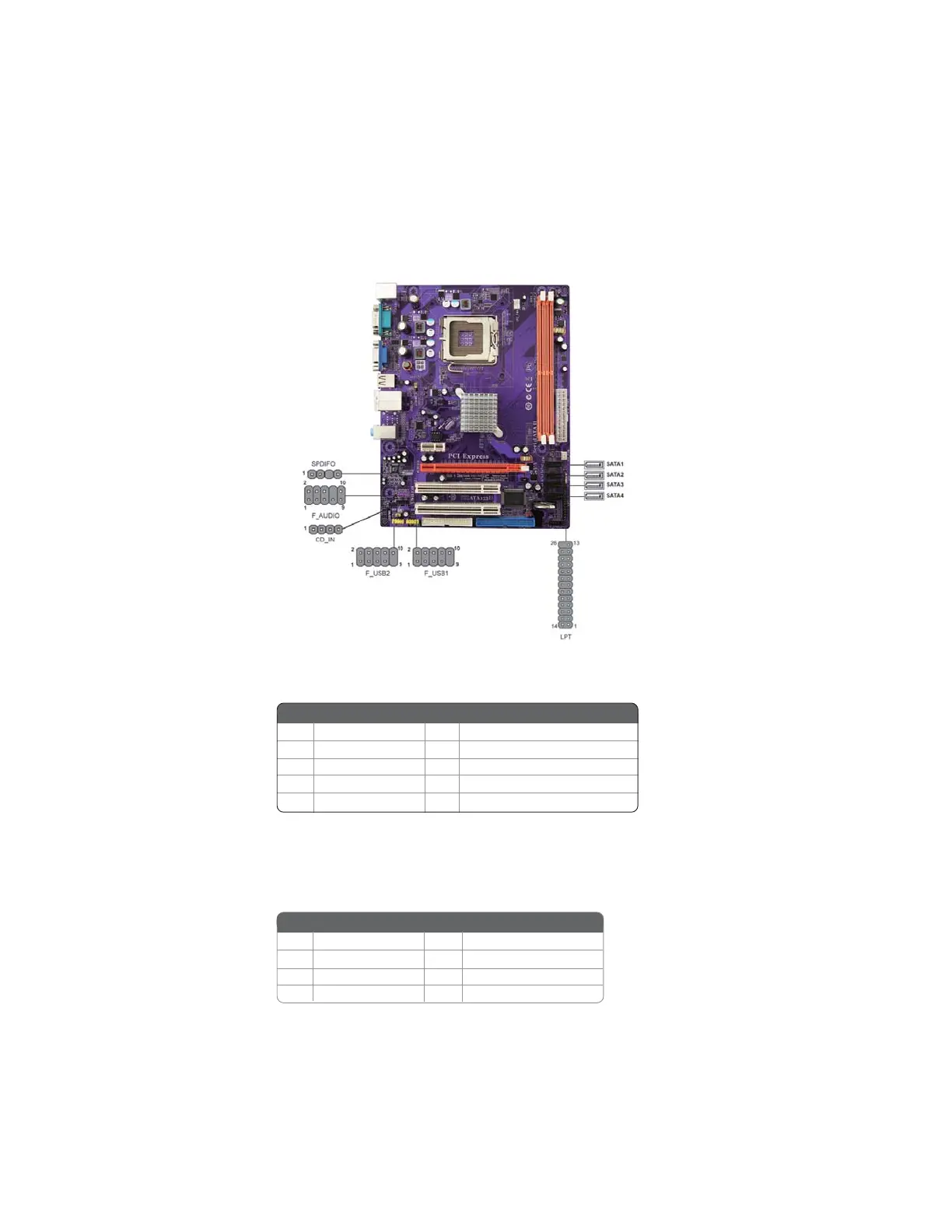

Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

SATA1~4: Serial ATA connectors

These connectors are used to support the new Serial ATA devices for the highest date

transfer rates (3.0 Gb/s), simpler disk drive cabling and easier PC assembly. It elimi-

nates limitations of the current Parallel ATA interface. But maintains register com-

patibility and software compatibility with Parallel ATA.

1 Ground 2 TX+

3 TX- 4 Ground

5 RX- 6 RX+

7 Ground - -

Pin Signal Name

F_AUDIO: Front Panel Audio header

This header allows the user to install auxiliary front-oriented microphone and line-

out ports for easier access.

Pin Signal Name Function

1 PORT 1L 2 AUD_GND

3 PORT 1R 4 PRESENCE#

5 PORT 2R 6 SENSE1_RETURN

7 SENSE_SEND 8 KEY

Pin Signal Name

9 PORT 2L 10 SENSE2_RETURN

Pin Signal Name

Questions and Answers:

Need help?

Do you have a question about the ECS GF7050VT-M5 and is the answer not in the manual?

ECS GF7050VT-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Core 2 Duo, Intel Core 2 Quad
CPU fan connector	Yes
Number of SATA connectors	4
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Certification	ROHS
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
BIOS memory size	64 Mbit
Maximum graphics card memory	256 MB
RAID levels	0, 1
