Installing the Motherboard
Connecting I/O Devices

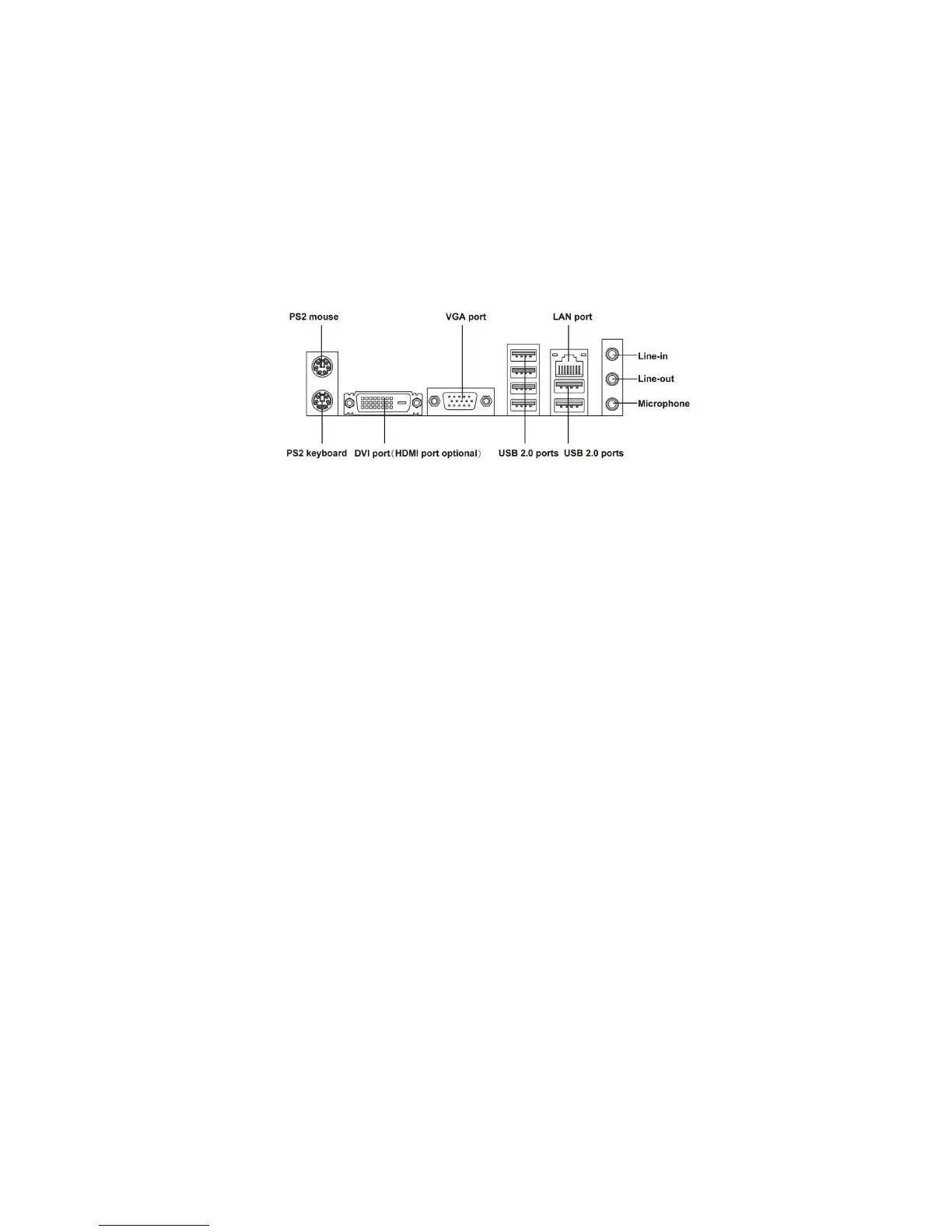

The backplane of the motherboard has the following I/O ports:
DVI Port Connect the DVI port to the monitor.
(HDMI port optional)
USB 2.0 Ports Use the USB 2.0 ports to connect USB 2.0 devices.
Use the three audio ports to connect audio devices. The
first jack is for stereo line-in signal. The second jack is for
stereo line-out signal. The third jack is for microphone.
Audio Ports
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
VGA Port Connect your monitor to the VGA port.
