Introducing the Motherboard

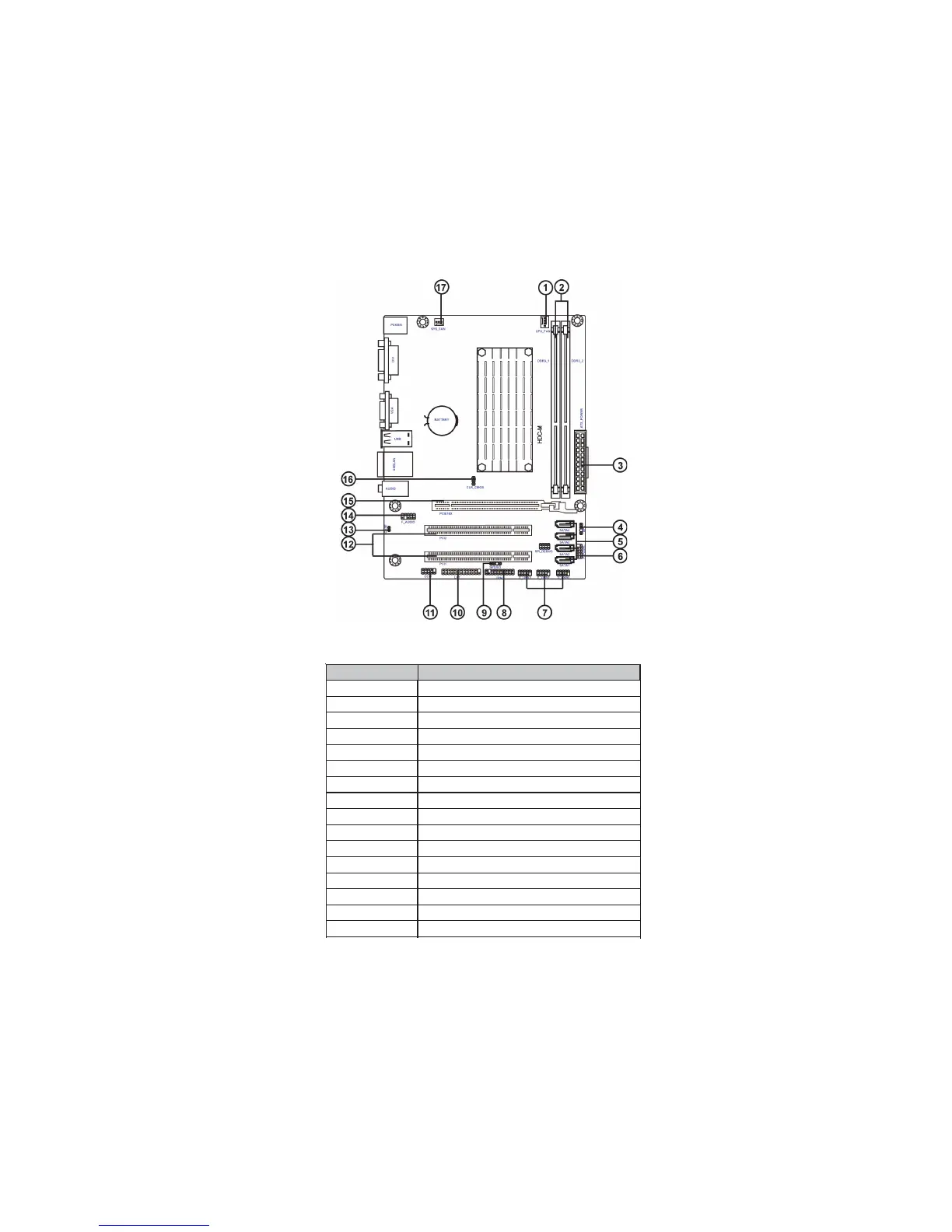

Motherboard Components
Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
1. CPU_FAN CPU cooling fan connector
2. DDR3_1~2 240-pin DDR3 SDRAM slots
3. ATX_POWER Standard 24-pin ATX power connector
4. SATA1~4 Serial ATA 3Gb/s connectors
5. SPK Speaker header
6. F_PANEL Front panel switch/LED header
7. F_USB1~3 Front panel USB 2.0 headers
8. TPM Trusted Platform Module header (Optional)
9. SPDIFO SPDIF out header
10. LPT Onboard parallel port header
11.COM Onboard serial port header
12. PCI1~2 32-bit add-on card slots
13. CASE CASE open header
14. F_AUDIO1 Front panel audio header
15. PCIE16X PCI Express 16x slot for graphics interface
16. CLR_CMOS Clear CMOS jumper
