EDAN INSTRUMENTS SE-2003 Series

SE-2003&SE-2012 Series Holter System Recorder User Manual
- 15 -

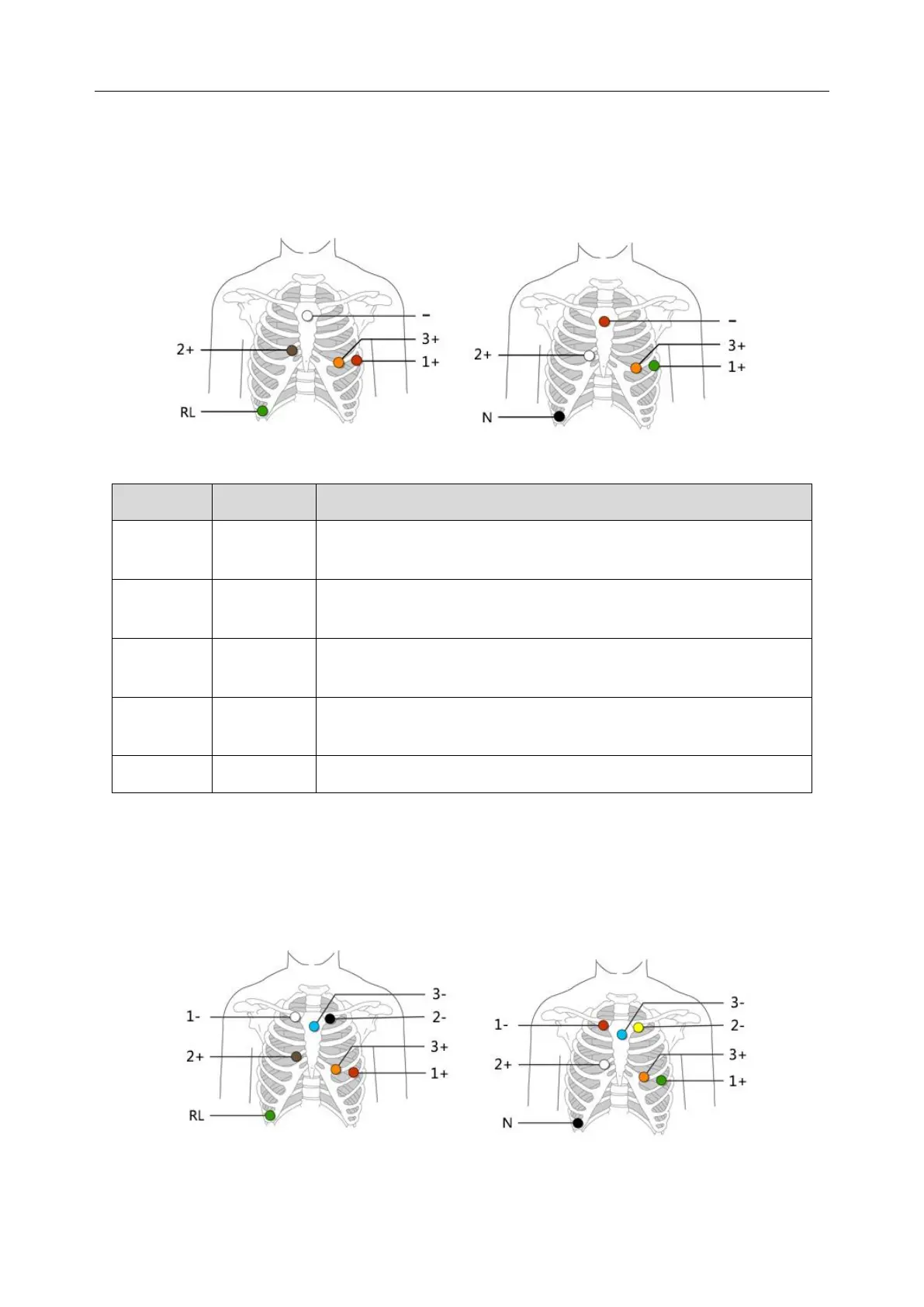

3.4.1.2 5 Electrodes 3 Channels
Five-electrode-three-channel lead wires are utilized by the recorder to create a 3-channel ECG
signal.
AHA IEC
IEC
AHA
Electrode Placement
Red
(COM-)
White
(COM-)
Right Manubrial border of the Sternum.
Green
(CH1+)
Red
(CH1+)
Fifth intercostal space on the left anterior axillary line, equivalent to
V5 breast lead.
White
(CH2+)
Brown
(CH2+)
Right of Xiphoid Process on the rib, equivalent to V1.
Orange
(CH3+)
Orange
(CH3+)
Left fifth rib, equivalent to V3.
Black(N)
Green (RL)
Lower right rib margin over bone.
3.4.1.3 7 Electrodes 3 Channels
Seven-electrode-three-channel lead wires are utilized by the recorder to create a 3-channel ECG
signal.
AHA IEC
