EDAN INSTRUMENTS SE-2003 Series

SE-2003&SE-2012 Series Holter System Recorder User Manual
- 16 -
IEC
AHA
Electrode Placement
Green
(CH1+)
Red (CH1+)
Fifth intercostal space on the left anterior axillary line,
equivalent to V5 breast lead.
Red (CH1-)
White (CH1-)
Right Manubrial border of the Sternum.
White
(CH2+)
Brown
(CH2+)
Approximately 1 inch right of Xiphoid Process on the rib.
Yellow
(CH2-)
Black (CH2-)
Left Manubrial border of the Sternum.
Black (N)
Green (RL)
Lower right rib margin over bone.
Orange
(CH3+)
Orange
(CH3+)
Left fifth rib, equivalent to V3...
Blue (CH3-)
Blue (CH3-)
Center of the Manubrium.

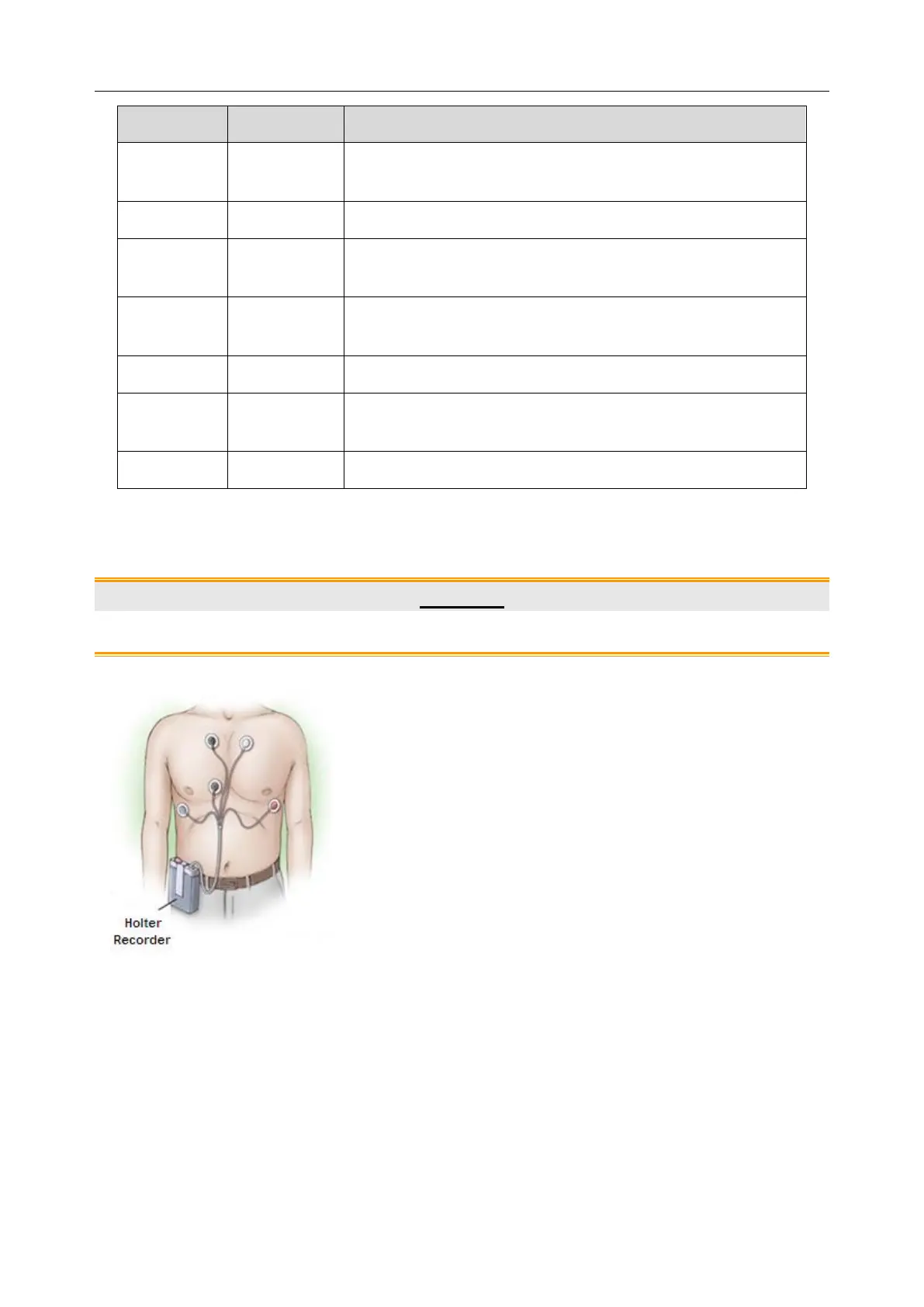

3.4.2 Attaching the Electrodes
CAUTION
The disposable electrodes can only be used for one time.
Disposable Electrode Connection
1. Clean the electrode areas on the body surface with 75%
alcohol.
2. Attach the disposable electrodes to the electrode positions
on the body surface.
3. Clip the disposable electrodes with the lead wires.
Proper skin preparation (abrasion if necessary), proper
electrodes, and patient cables in fixed position are very
important for a good signal quality.
