Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Presets
- 140 -
Transducer: Select one transducer from the list to configure its exam presets.
Preset List: Select one exam preset to configure its associated Image, Comment, Measure, Body
Mark or Patient info settings.
Image Preset: Open the Image Preset page, as shown below, for configuring the imaging parameters
for each imaging mode.

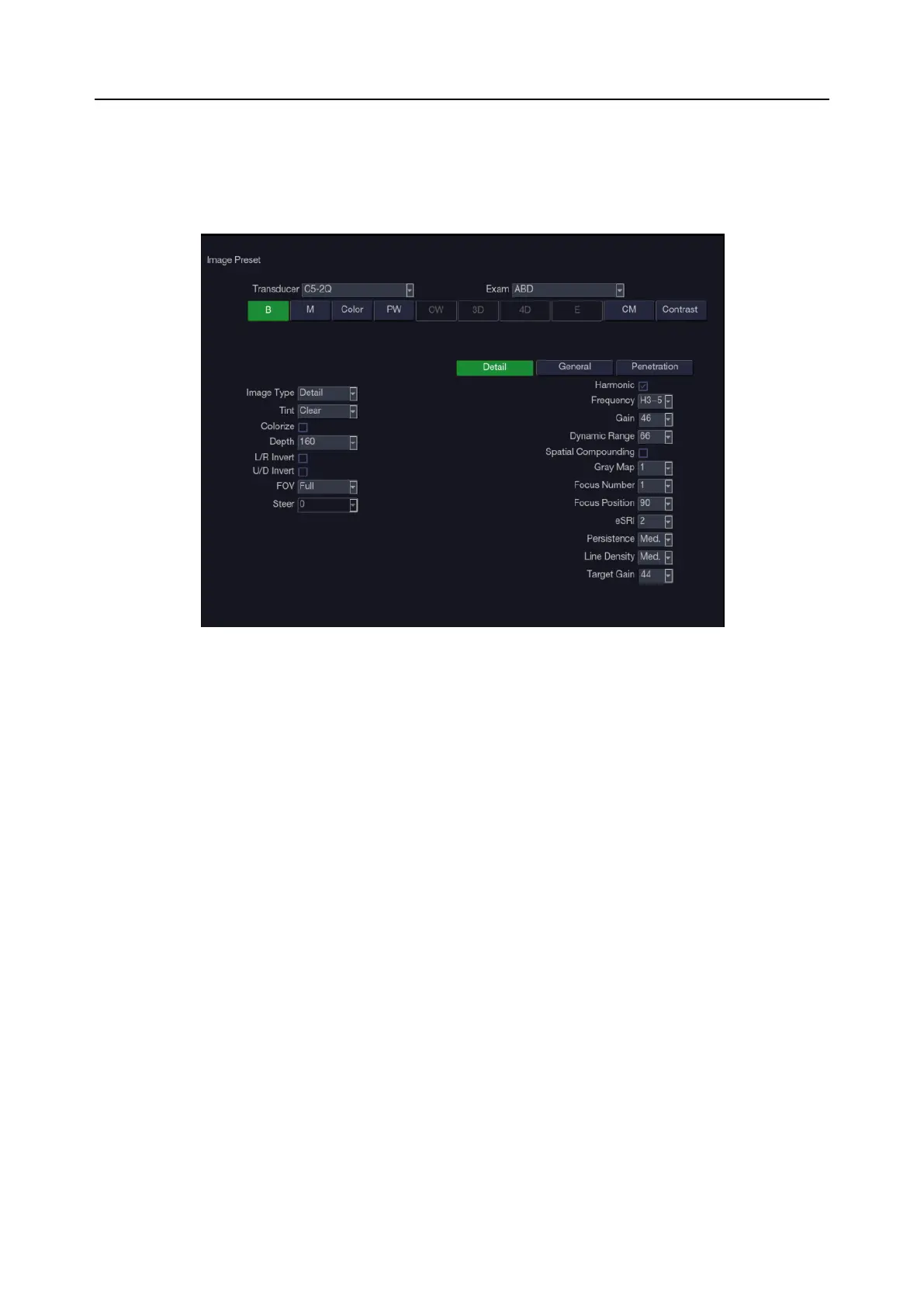

Figure 10-5 Example Set-up Screen for Imaging Parameters
Transducer and Exam Preset: There are drop-downs at the top of the screen for selecting the
transducer and Exam Preset you want to edit. Each transducer has its own set of exam presets,
and these two drop-downs let you select which exam preset, on which transducer, you want to
edit.
Image Modes: The next row of controls show tabs for each imaging mode. These let you select
which imaging mode you want to edit for the current exam preset. The example shows the
B-mode tab selected.
The image mode is divided into two sections. Parameters that have one value for each preset
are shown on the left. Parameters that are associated with Image Types are shown on the
right.
Image Type: Each imaging mode has a set of image types. For example in B-mode the types
are Detail, General, and Penetration. While imaging, the image type lets you quickly change
the aesthetic look of the image without changing settings like depth or invert status. The right
side of the preset set-up screen shows a tab for each image look. The parameters shown
below those tabs let you customize that image type for the current preset.
Measure: Select one of the pre-defined application measurement packages to be the default measure
preset for the selected exam preset.
Comments: Select one of the pre-defined comment presets to be the default comment preset for the
selected exam preset.
Body Mark: Select one of the pre-defined body mark presets to be the default body mark preset for
the selected exam preset.
TI: Select the TIB, TIS or TIC to display on main screen.
Output Power: Set the default acoustic output power of the selected exam preset.
