Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Getting Started
- 15 -

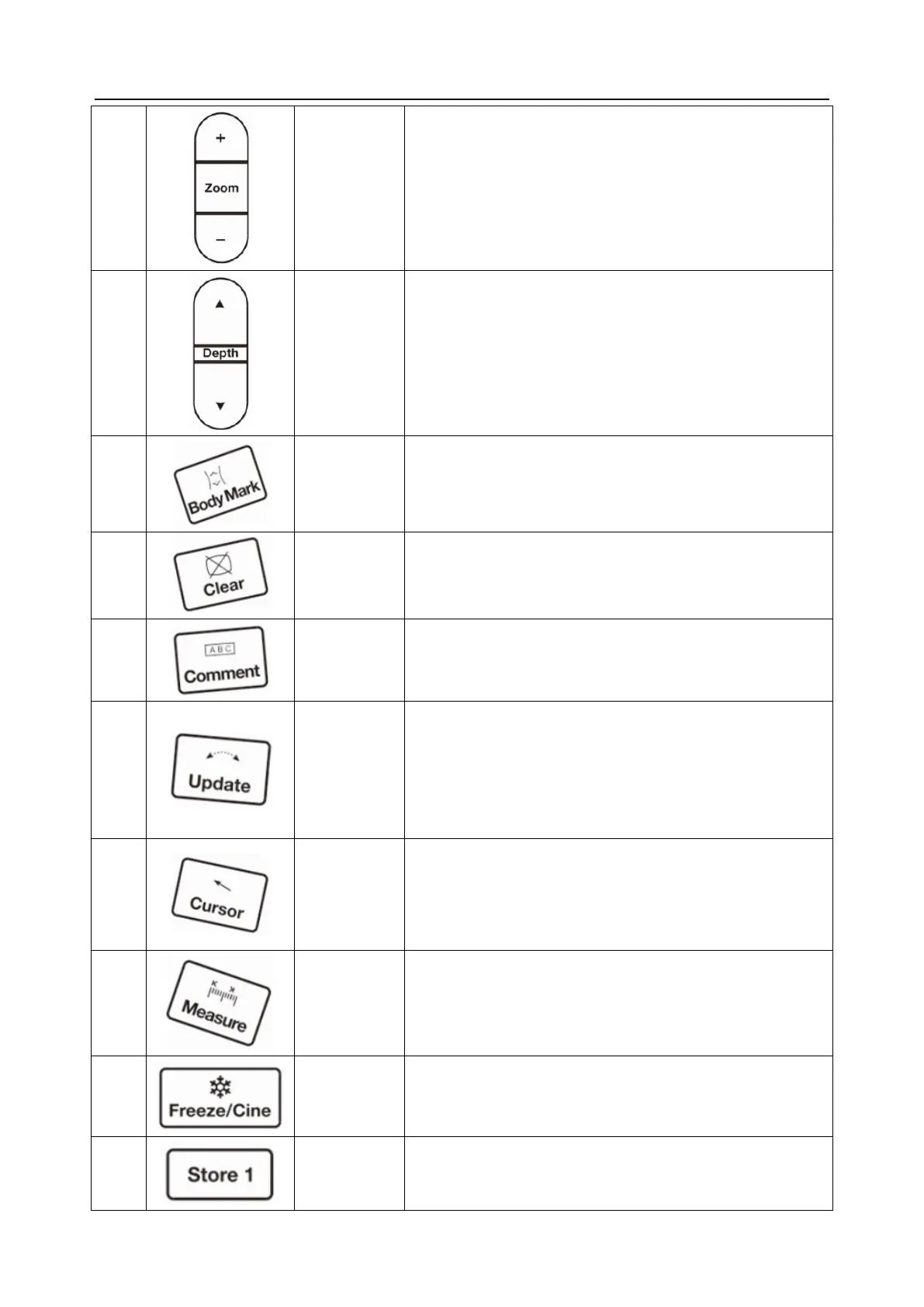

8.
Zoom
Press upper or lower part of this key to use Pan Zoom
function, and press Zoom to use Spot Zoom function. See
section 7.4 for details.
9.
Depth
Press to adjust the depth of the image displayed.
10.
Body Mark
Enters or exits the Body Mark function.
11.
Clear
Press to clear all the measurements, calculations,
comments, and body marks displayed on the current
image.
12.
Comment
Enters or exits the Comment function.
13.
Update
In measurement, pressing <Update> switches the active
side of calipers. See section 8.1 for details.
In Pre-Doppler mode, pressing <Update> invokes
Spectral Doppler mode. When Spectral Doppler strip is
displayed, pressing Update allows switching between live
acquisition of the Doppler strip or the reference image.
14.
Cursor
Press to hide or display the mouse cursor.
When pressing Cursor while using the Comments
function, the system will display a green cursor in the
image field that can be used to point to anatomical
structures.
15.
Measure
Invokes the Measure function for Generic and Application
Measurements. See section 8 for details.
16.
Freeze/Cine
Press this key to switch between the frozen and real-time
states.
17.
Store 1
One of three keys that can be configured to store or print
images or clips, or to set video printers. See section 9.1
for details.
