SONOTRAX(2009) Series Ultrasonic Pocket Doppler User Manual
23
Furthermore all configurations shall comply with
the valid version of the system standard IEC/EN
60601-1-1. Anybody who connects additional
equipment to the signal input connector or signal
output connector to configure a medical system
must ensure that the system complies with the
requirements of the valid version of the system
standard IEC/EN 60601-1-1. If in doubt, consult
our technical service department or your local
distributor.
2.2.5 Probe Socket

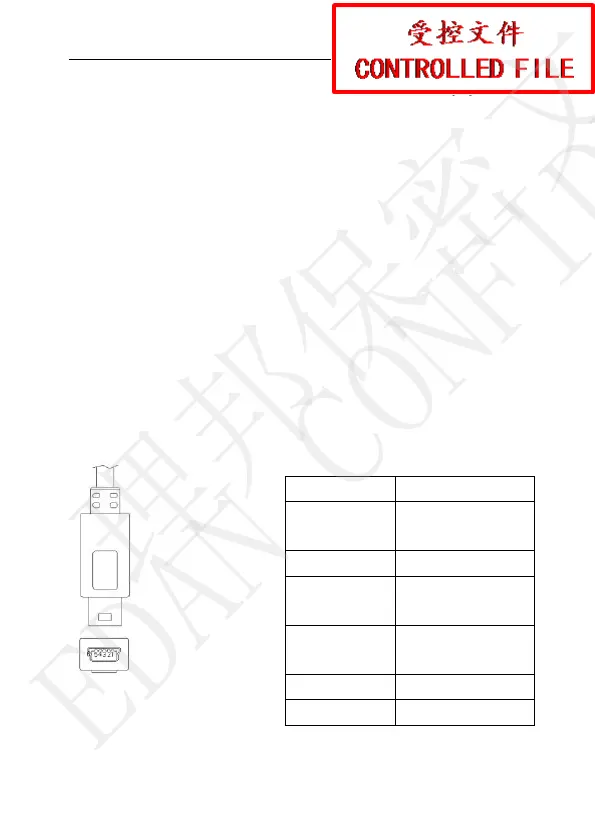

The probe socket is as shown in figure 2-6.
Figure 2-6 Probe socket
Jack
Definition
1
Power
Supply
2
Signal
3
Probe Coding
1
4
Probe Coding
2
5
GND
6
(Shell) GND
理邦保密文件
EDAN CONFIDENTIAL
