SONOTRAX(2009) Series Ultrasonic Pocket Doppler User Manual
41
3) When the charging indicator goes off, the
battery pack is fully charged (approximately
3 ~ 4 hours are needed). Remove the power
adapter plug and the Doppler is ready for
examining again.

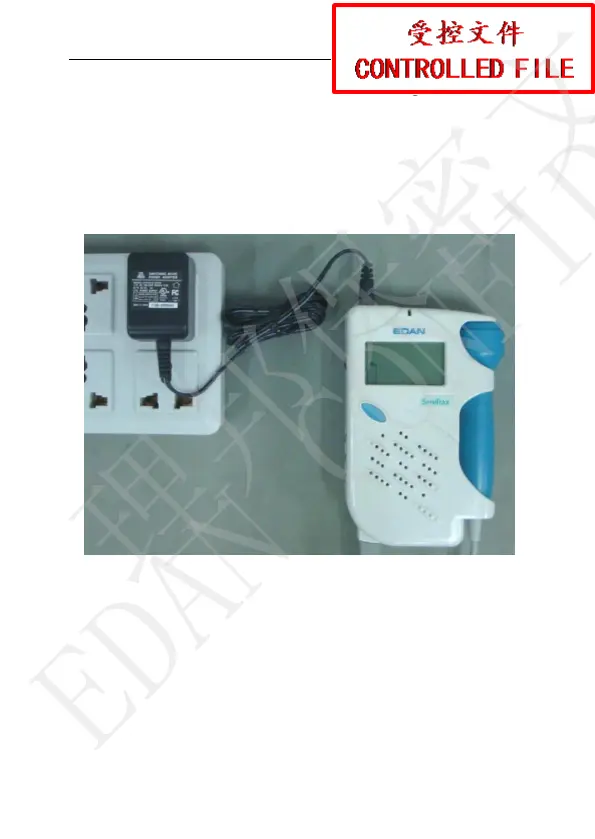

Figure 3-7 Charging NI-MH Battery Pack
The specifications of the provided power adapter are
as follows:
Input: AC 100-240 V, 50 Hz/60 Hz, 0.2 A
Output: DC 5 V, 1 A
理邦保密文件
EDAN CONFIDENTIAL
