Chapter 1: Introducing the Ectane 2 Ground Connector
Ground Connector
Behind the instrument, you will find the ground connector used to ground the
Ectane 2 when the situation requires it.

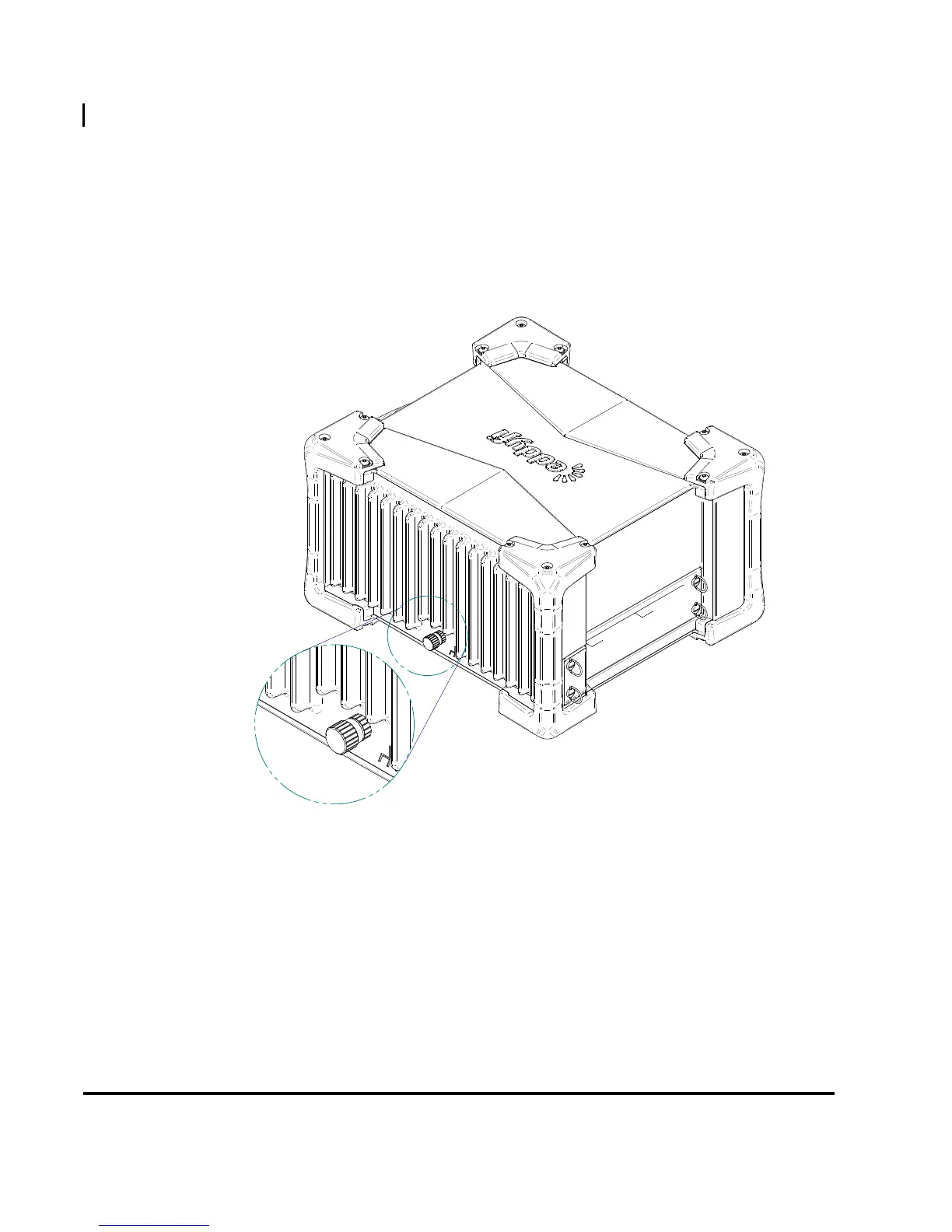

Figure 9 Ground connector
The ground connector is a simple screw that you remove to insert the ground wire,
putting the screw back in to secure the connection.
