eddyfi Ectane 2 User Manual

36
Chapter 4: Connector References IRIS Connector
IRIS Connector
The IRIS connector allows the instrument to control IRIS probes.

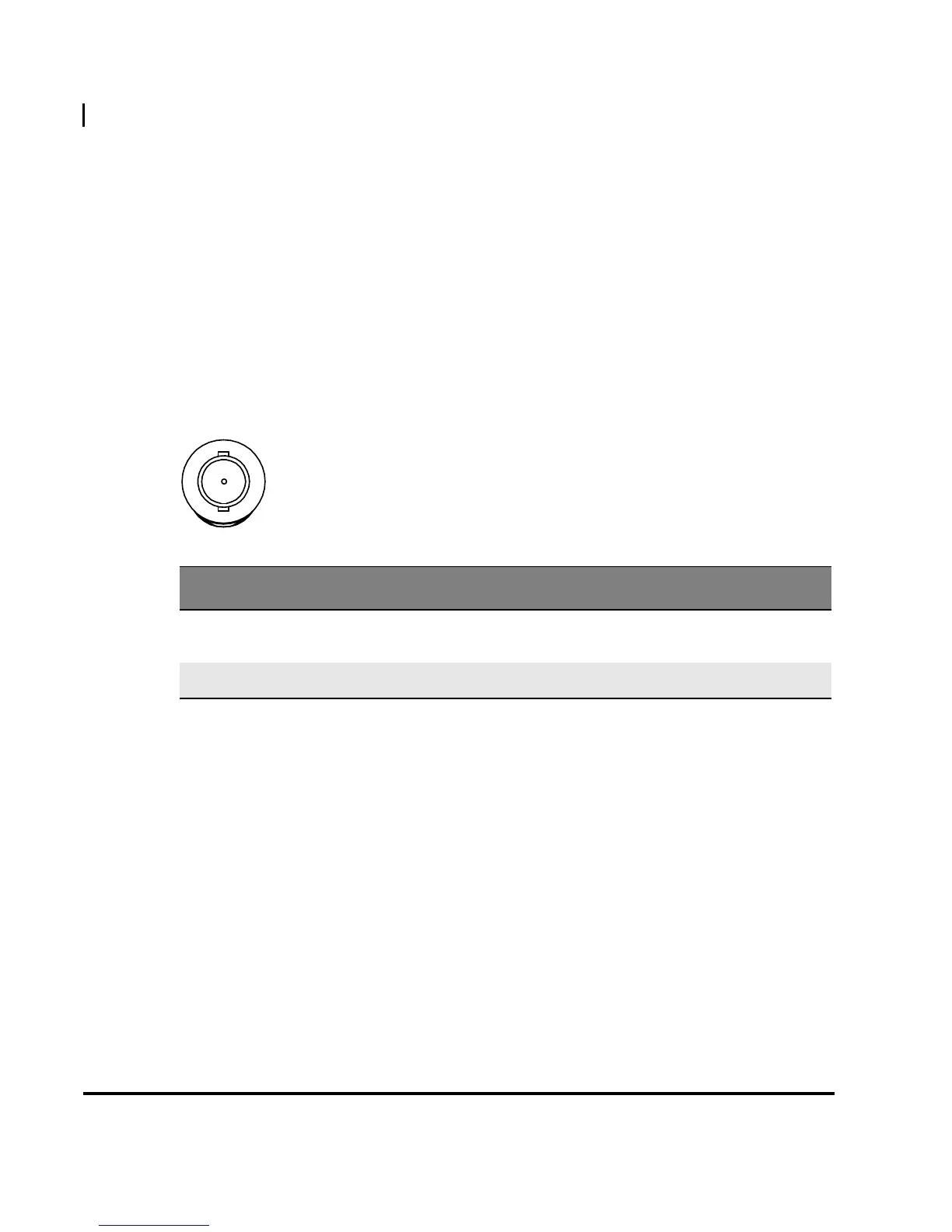

Figure 5 IRIS connector
EDDY CURRENT ARRAY Connectors
On the Ectane
®
2 instruments equipped with the SmartMUX™ option, 160-pin
connectors are available on the front of the instrument, under E
DDY CURRENT
A
RRAY. These connectors are specific and designed by Eddyfi.
For details about the Eddyfi 160-pin connectors, contact Eddyfi directly at
info@eddyfi.com.
Description BNC Adapter, bulkhead, 50
Ω
Manufacturer, number Amphenol 31-220N-RFX
Eddyfi NDT, Inc., MACN4022
Suggested cable connector POMONA, 2249-C-120
Eddyfi NDT, Inc., MAME0021
Table 5 IRIS connector pinout
Pin Signal Description
Center Pulser output
Receiver input
Ultrasound pulser outputs and ultrasound receiver input
Shell Ground Power supply common to instrument and casing
