Charging the Batteries

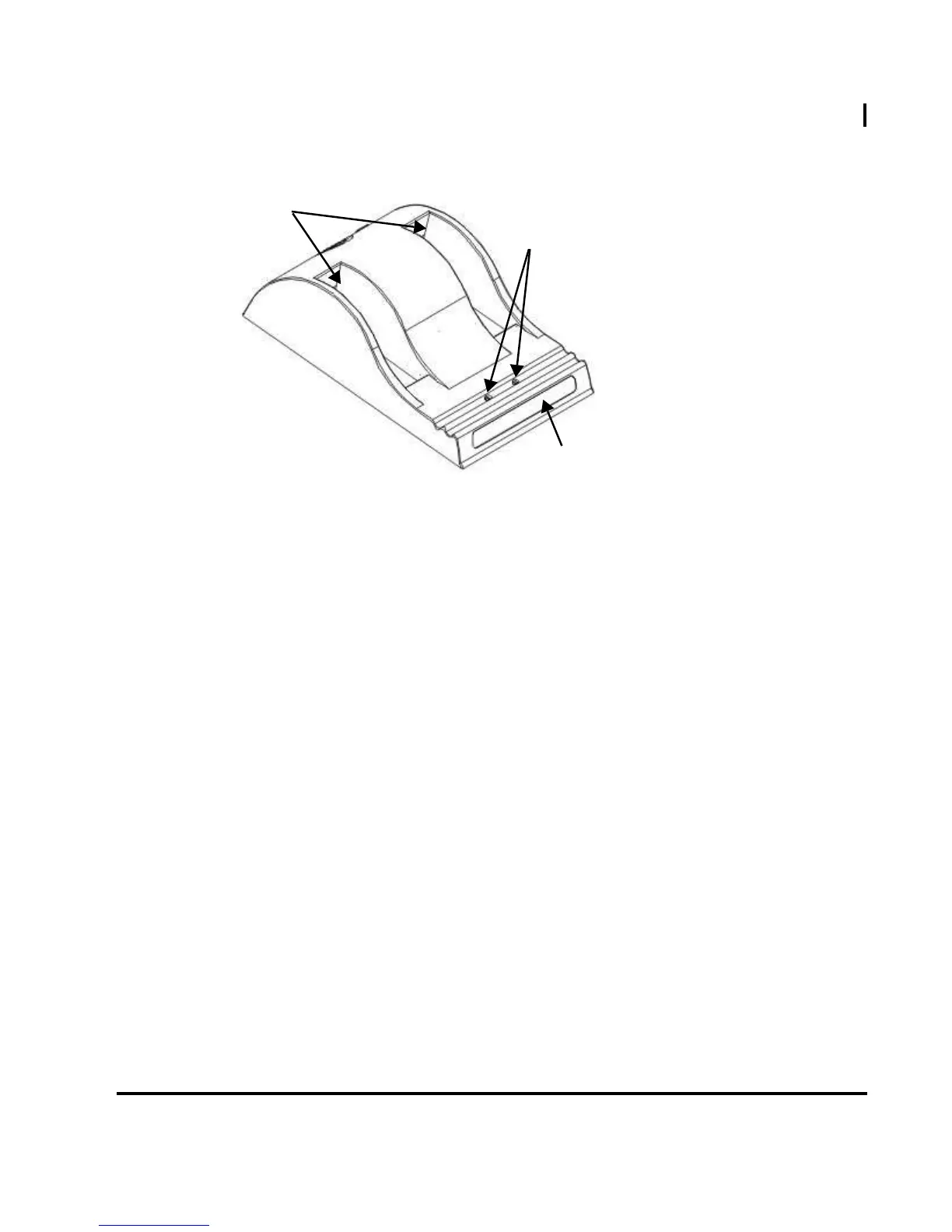

Figure 1 Battery charger
To charge the batteries with the optional, external charger:
1. Place the charger on a flat and level surface, away from heat and moisture
sources.
2. Insert the power supply’s DC connector into the back of the external charger.
3. Connect the power supply to an AC supply using the supplied cable.
All the LEDs flash momentarily to let you know that power is present.
4. Place the batteries into either battery bay, making sure that their 5-way
connectors are fully seated.
The LEDs in the status window display status information and the charger
automatically begins charging the batteries.
Battery Charger LED Status Indicator
When batteries are in the charger, status LEDs in the status window display
various information:
Green (blinking) Battery is charging
Green (solid) Battery is fully charged
Blue (blinking) Battery calibrating
Blue (solid) Battery fuel gauge calibrated
Red (blinking) Battery gauge in need of calibration
Red (solid) Error
