eddyfi Ectane 2 User Manual

37
Ethernet Connector
Ethernet Connector
The Ethernet connector is used to connect the Ectane 2 to a workstation through
an Ethernet link. Eddyfi supplies a high-quality, military-grade circular Ethernet
connector and cable. International Ethernet standards are used.

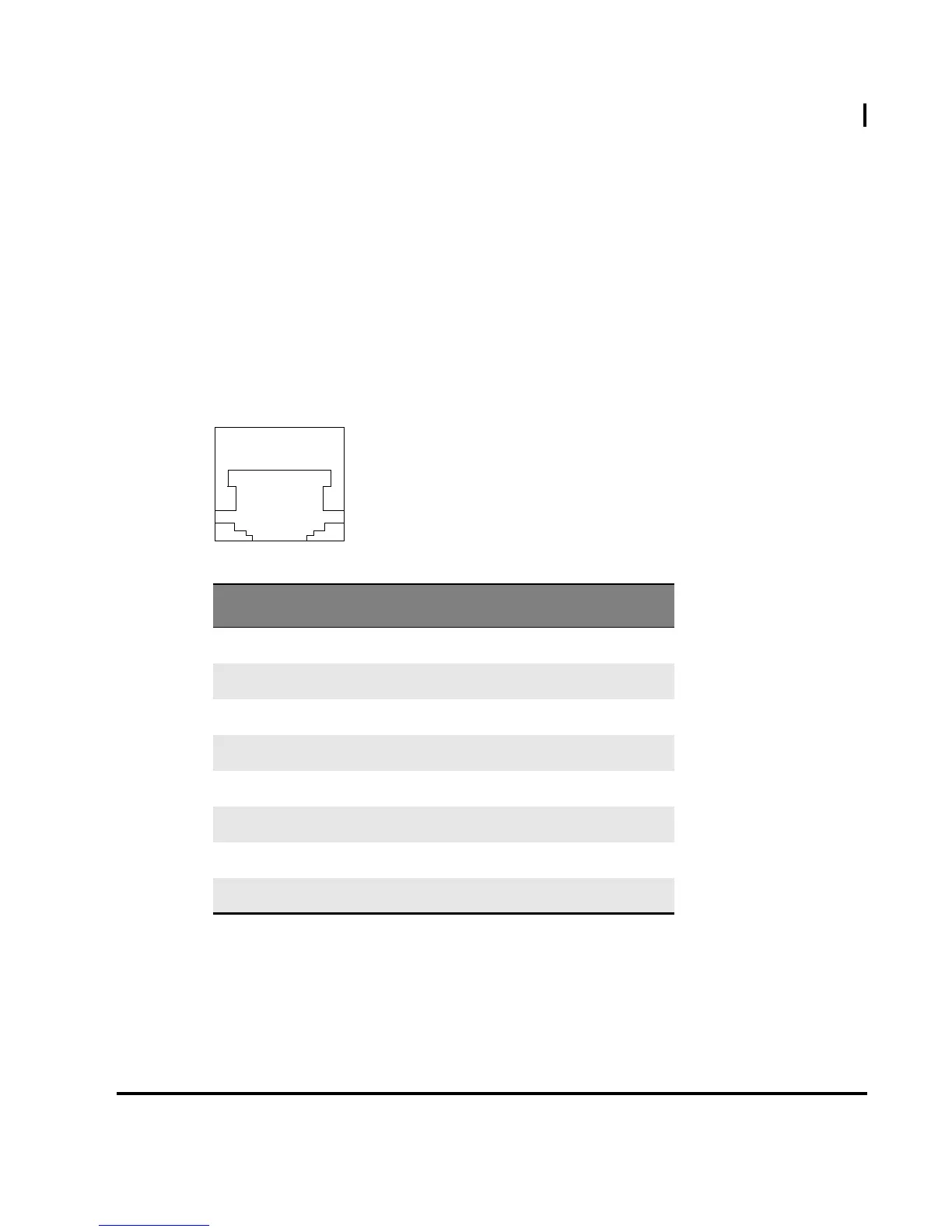

Figure 6 Ethernet connector
Important The Ectane 2 must be linked to a workstation with at least a category 5e, shielded,
Ethernet cable.
Description RJ45, female connector
Manufacturer, number PEI Genesis, Amphenol RJF22B00SCC
Eddyfi NDT, Inc., MACN4016
Table 6 Ethernet connector pinout
Pin I/O Signal Description
1 Bidirectional Bi_DA+ Bidirectional pair A+
2 Bidirectional Bi_DA– Bidirectional pair A–
3 Bidirectional Bi_DB+ Bidirectional pair B+
4 Bidirectional Bi_DC+ Bidirectional pair C+
5 Bidirectional Bi_DC– Bidirectional pair C–
6 Bidirectional Bi_DB– Bidirectional pair B–
7 Bidirectional Bi_DD+ Bidirectional pair D+
8 Bidirectional Bi_DD– Bidirectional pair D–
