RFT/NFT/MFL Connector (19 pins)
RFT/NFT/MFL Connector (19 pins)
The RFT/NFT/MFL connector is used to connect the remote field (RFT) and magnetic
flux leakage probes. The signals contained in the
RFT/NFT/MFL connector are the
RFT generator outputs, the RFT channel amplifier inputs, and a DC power
supply.

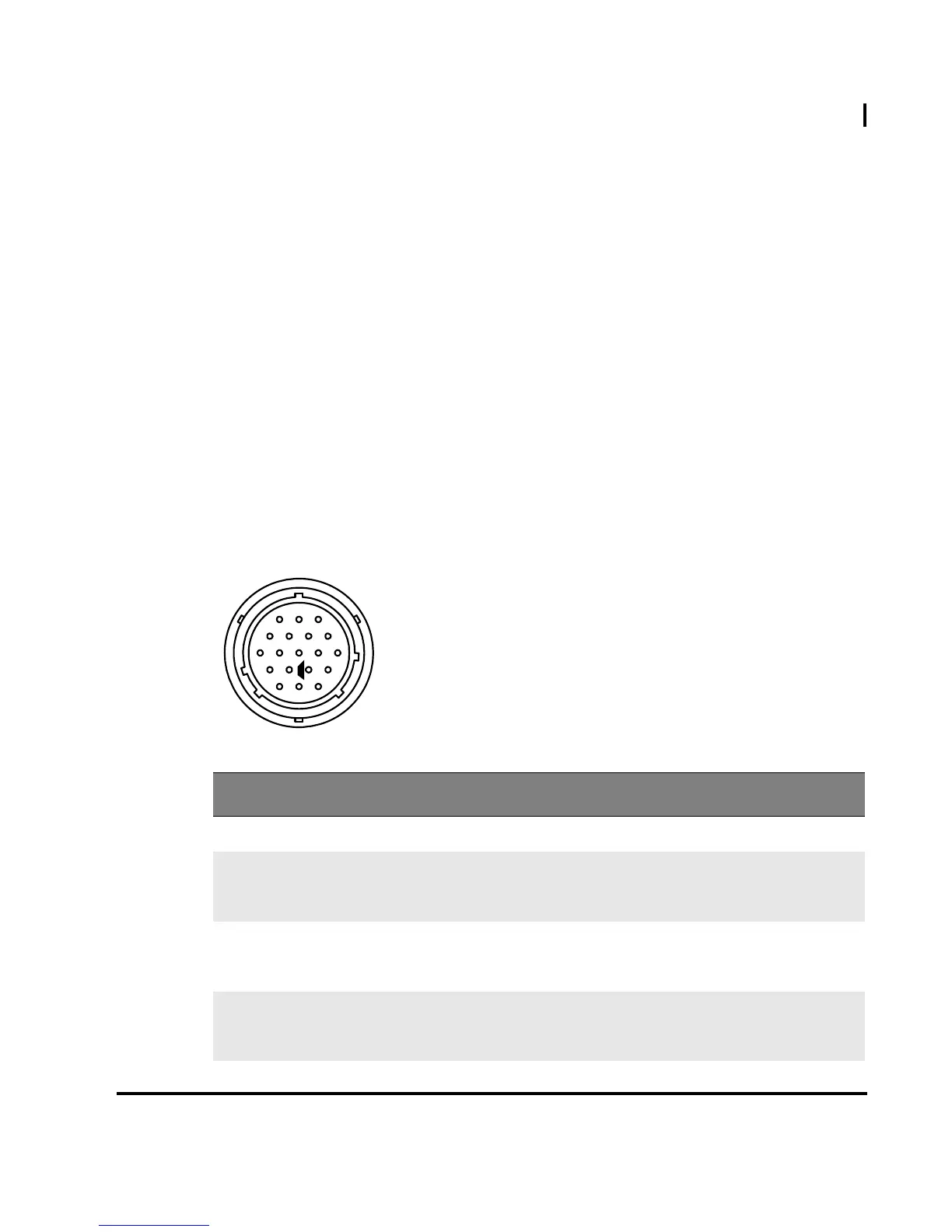

Figure 2 RFT/NFT/MFL connector
Description 19-pin, female, shell 14 connector
Manufacturer, number Amphenol, 58-570124-19S
or
Souriau 851-02E1419S50A7
Eddyfi NDT, Inc., MACN4015
Suggested cable connector ITT Cannon, KPT06A14-19P027
or
Amphenol PT06J-14-19P
Eddyfi NDT, Inc., MACN4021
Table 2 RFT/NFT/MFL connector pinout
Pin I/O Signal Description
A– GND Ground
B Input RFT_IN 4-
MFL4_IN 4-
Negative RFT input #4
Negative MFL input #4
C Input RFT_IN 3+
MFL_IN 3+
Positive RFT input #3
Positive MFL input #3
D Input RFT_IN 3-
MFL3_IN 3-
Negative RFT input #3
Negative MFL input #3
