ECT BOBBIN Connector (4 pins)

The ECT BOBBIN connector allows you to connect standard 4-pin inspection

probes.

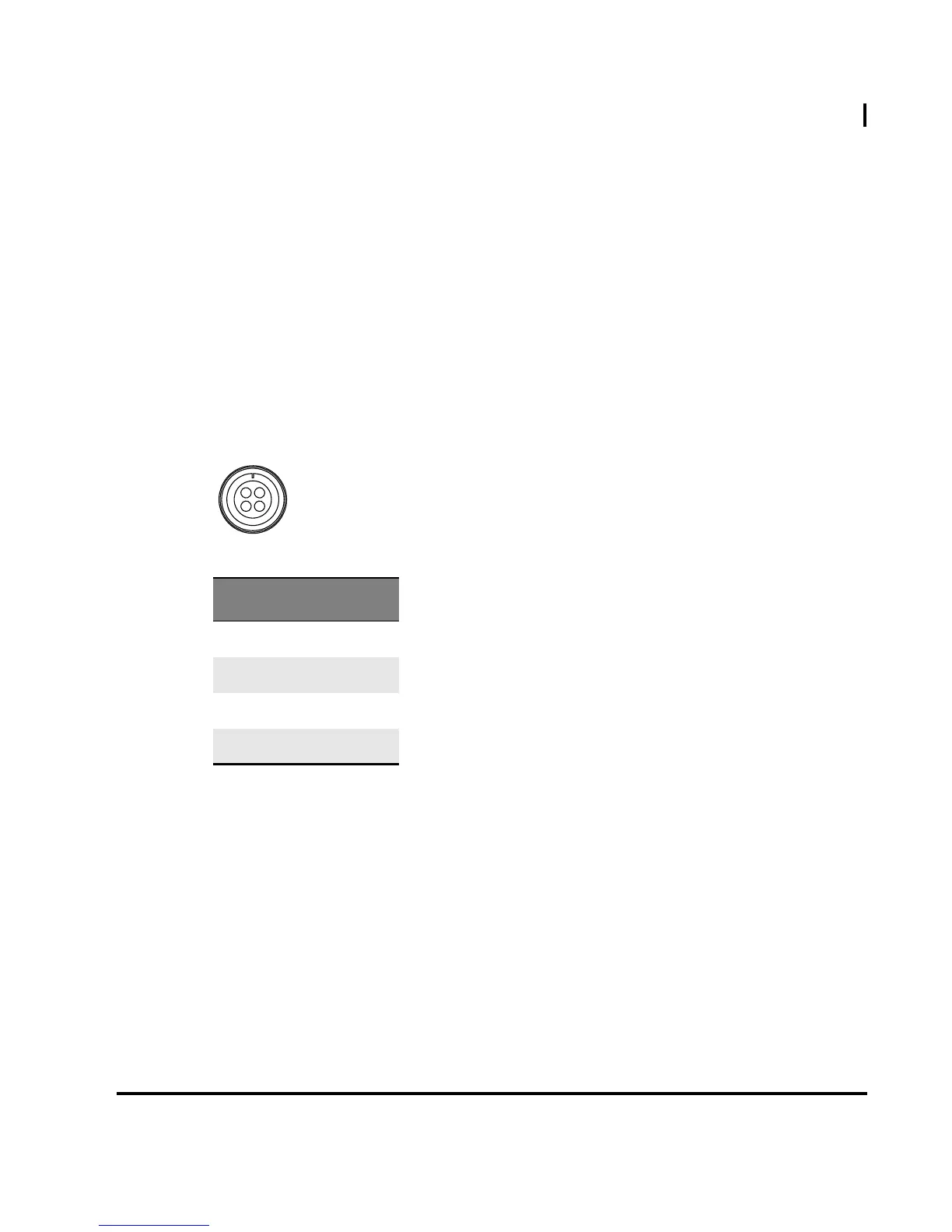

Figure 3 ECT BOBBIN connector

Description 4-pin, female, shell 14 connector

Manufacturer, number Amphenol ACS02A-14S-2S (472)

Eddyfi NDT, Inc., MACN4020

Suggested cable connector Amphenol 97-3106A-14S-2P

Eddyfi NDT, Inc., MACN0059

Table 3 ECT BOBBIN connector pinout

Pin Signal

ABobbin Abs/Diff

B Bobbin Diff

CGND

D GND
