Edge-Core ES3510MA - Figure 4: Power Supply Socket

C HAPTER 1 | Introduction
Description of Hardware
– 28 –
POWER SUPPLY SOCKET
There is one power socket on the rear panel of the switch. The standard power
socket is for the AC power cord.

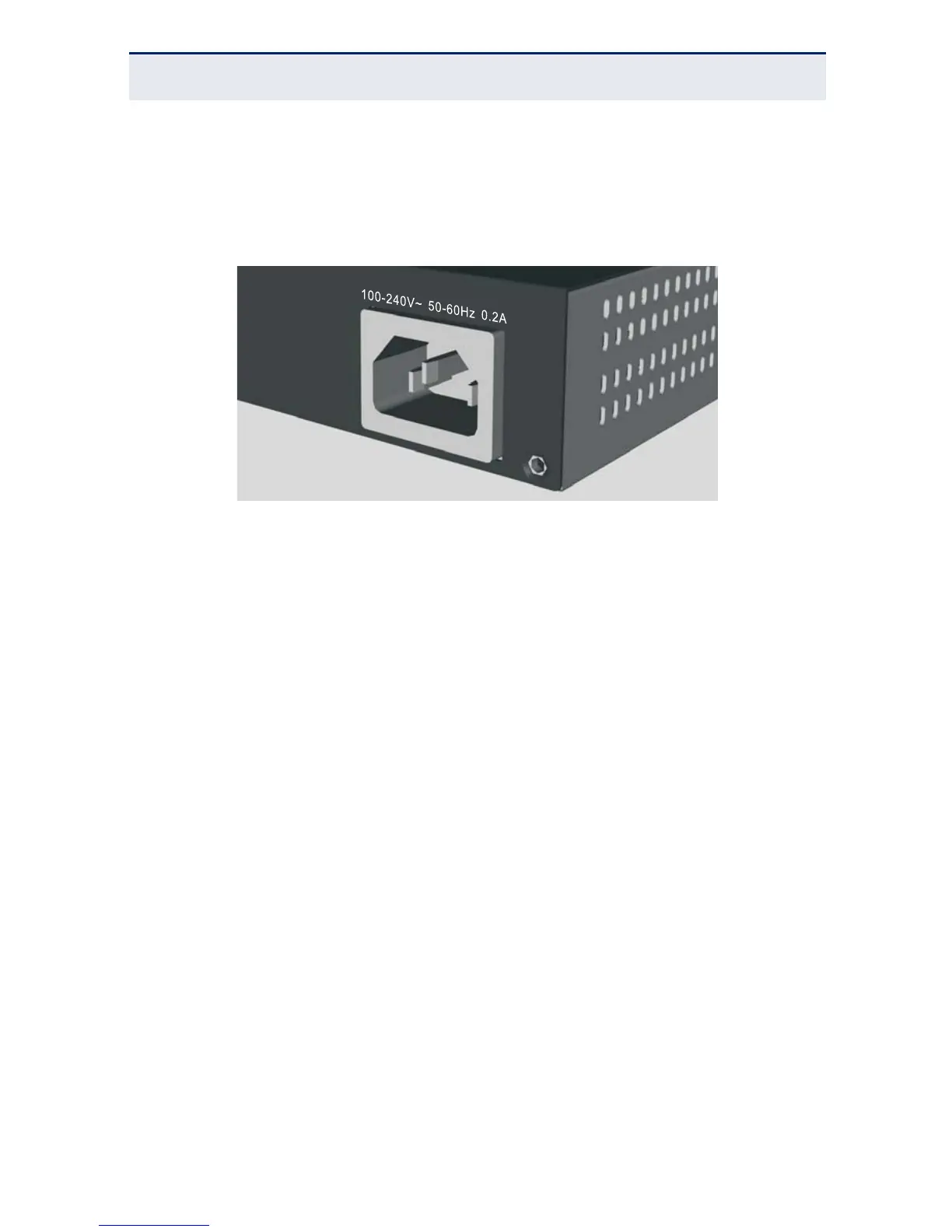

Figure 4: Power Supply Socket
