C HAPTER 2 | Network Planning
Application Examples
– 31 –
NETWORK AGGREGATION PLAN
With 10 parallel bridging ports (i.e., 10 distinct collision domains), the switch can
collapse a complex network down into a single efficient bridged node, increasing
overall bandwidth and throughput.
In the figure below, the 100BASE-TX ports on the switch are providing 100 Mbps
connectivity for up to 8 segments. In addition, the switch is also connecting
several servers at 1000 Mbps.

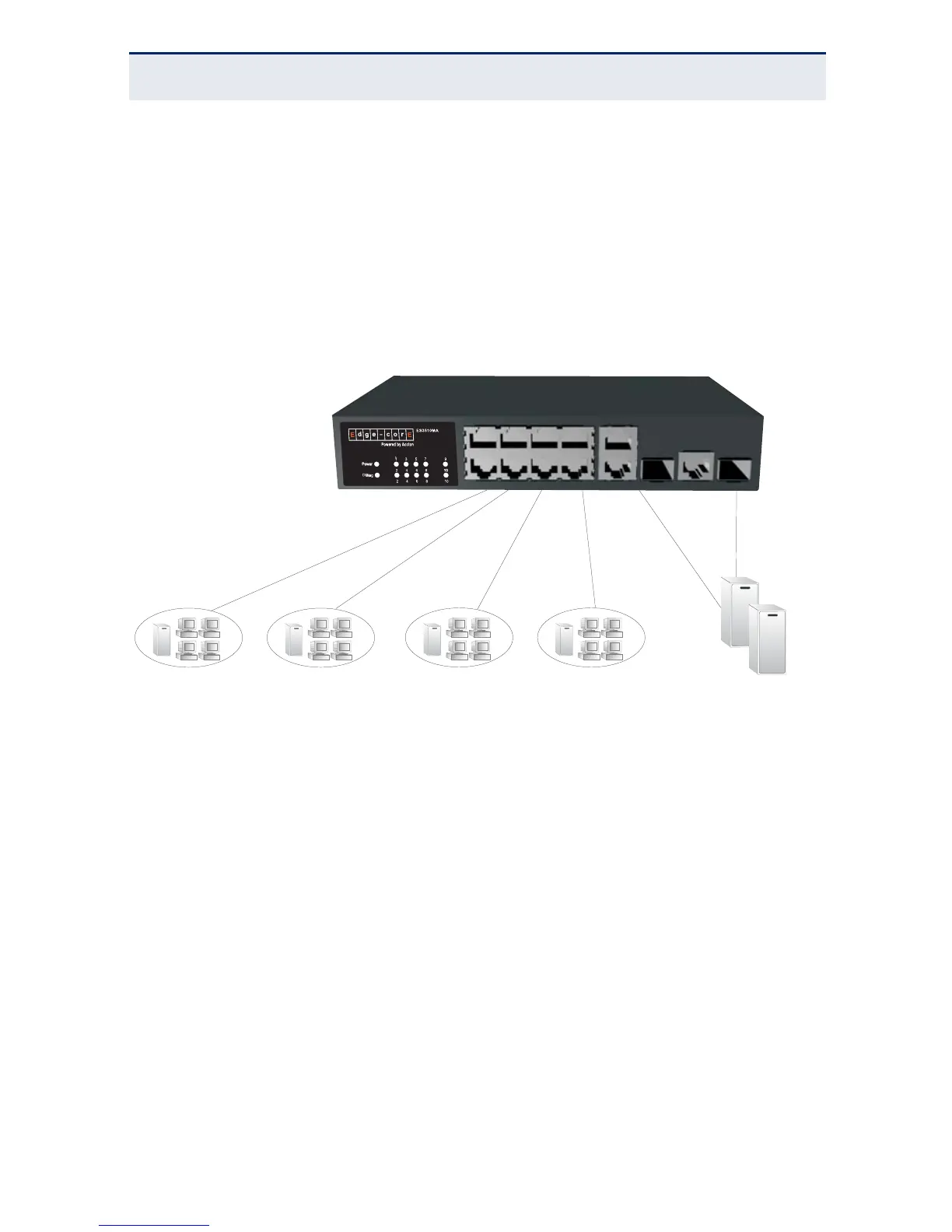

Figure 6: Network Aggregation Plan
Server Farm
10/100 Mbps
Segments
...
...
1000 Mbps
Segments
