Installing the Switch
3-2
3

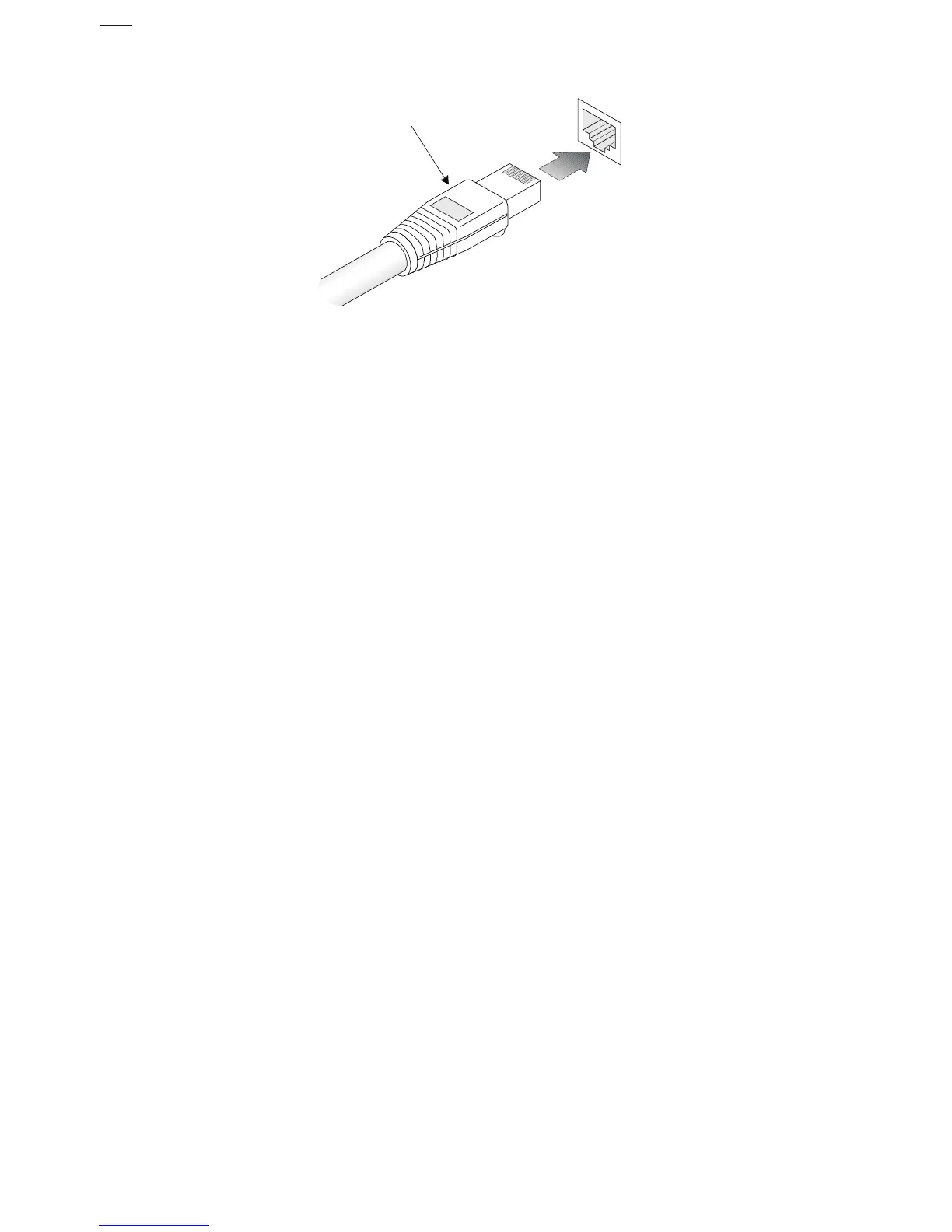

Figure 3-1 RJ-45 Connections
Equipment Checklist
After unpacking the ES4524M-PoE unit, check the contents to be sure you have
received all the components. Then, before beginning the installation, be sure you
have all other necessary installation equipment.
Package Contents
• ES4524M-PoE unit
• Four adhesive foot pads
• Bracket Mounting Kit containing two brackets and eight screws for attaching the
brackets to the switch
• Power cord—either US, Continental Europe or UK
• Console cable (RS-232)
• This Installation Guide
• Documentation CD
• Edge-core Warranty Registration Card
Optional Rack-Mounting Equipment
If you plan to rack-mount the switch, be sure to have the following equipment
available:
• Four mounting screws for each device you plan to install in a rack—these are not
included
• A screwdriver (Phillips or flathead, depending on the type of screws used)
RJ-45 Connector
