Installing the Switch
3-4
3
2. Mount the device in the rack, using four rack-mounting screws (not provided).
Be sure to secure the lower rack-mounting screws first to prevent the brackets
being bent by the weight of the switch.

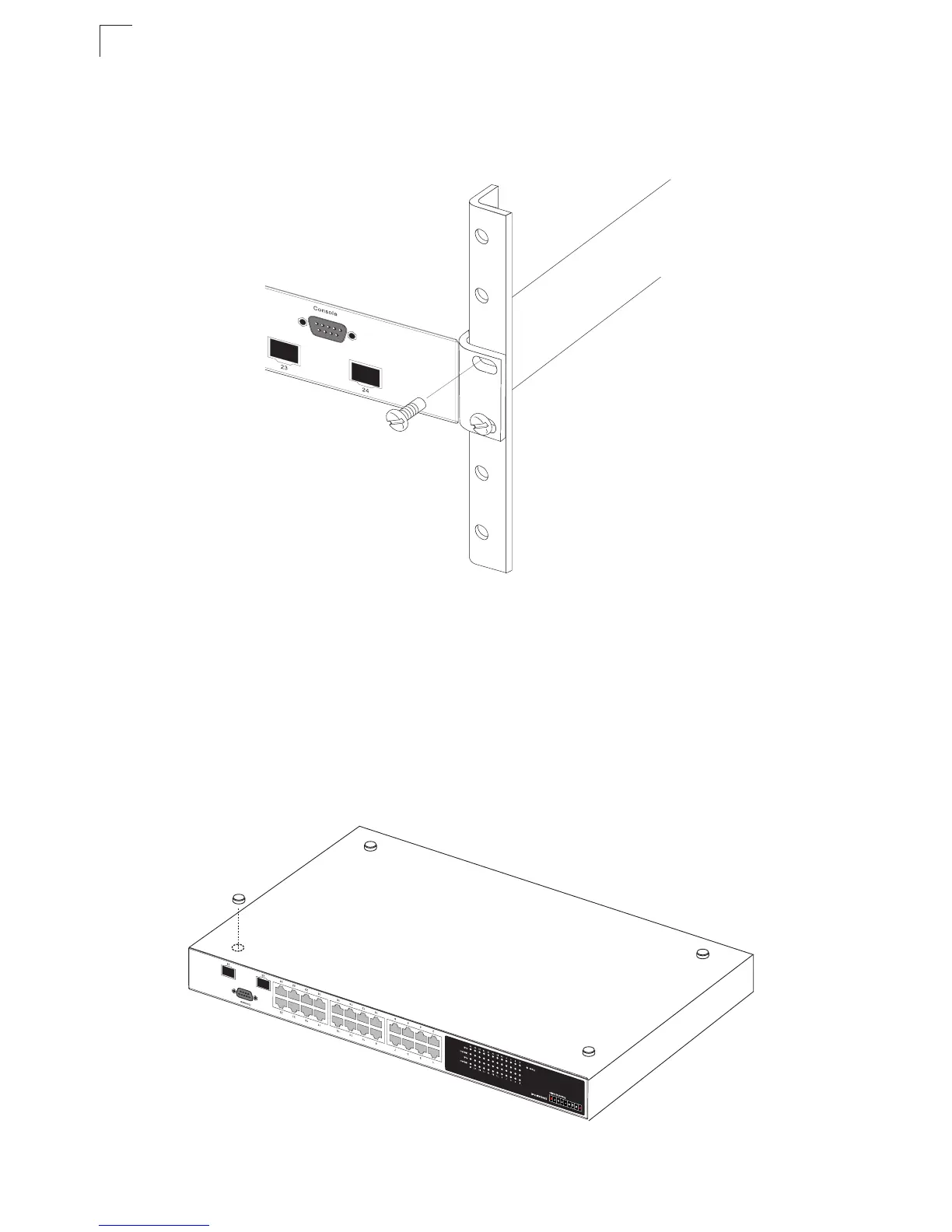

Figure 3-3 Installing the Switch in a Rack
3. If installing a single switch only, turn to “Connecting to a Power Source” at the
end of this chapter.
4. If installing multiple switches, mount them in the rack, one below the other, in
any order.o
Desktop or Shelf Mounting
1. Attach the four adhesive feet to the bottom of the first switch.
Figure 3-4 Attaching the Adhesive Feet
