Installing the Switch
3-6
3
Connecting to a Power Source
To connect a device to a power source:
1. Insert the power cable plug directly into the socket located at the back of the
device.

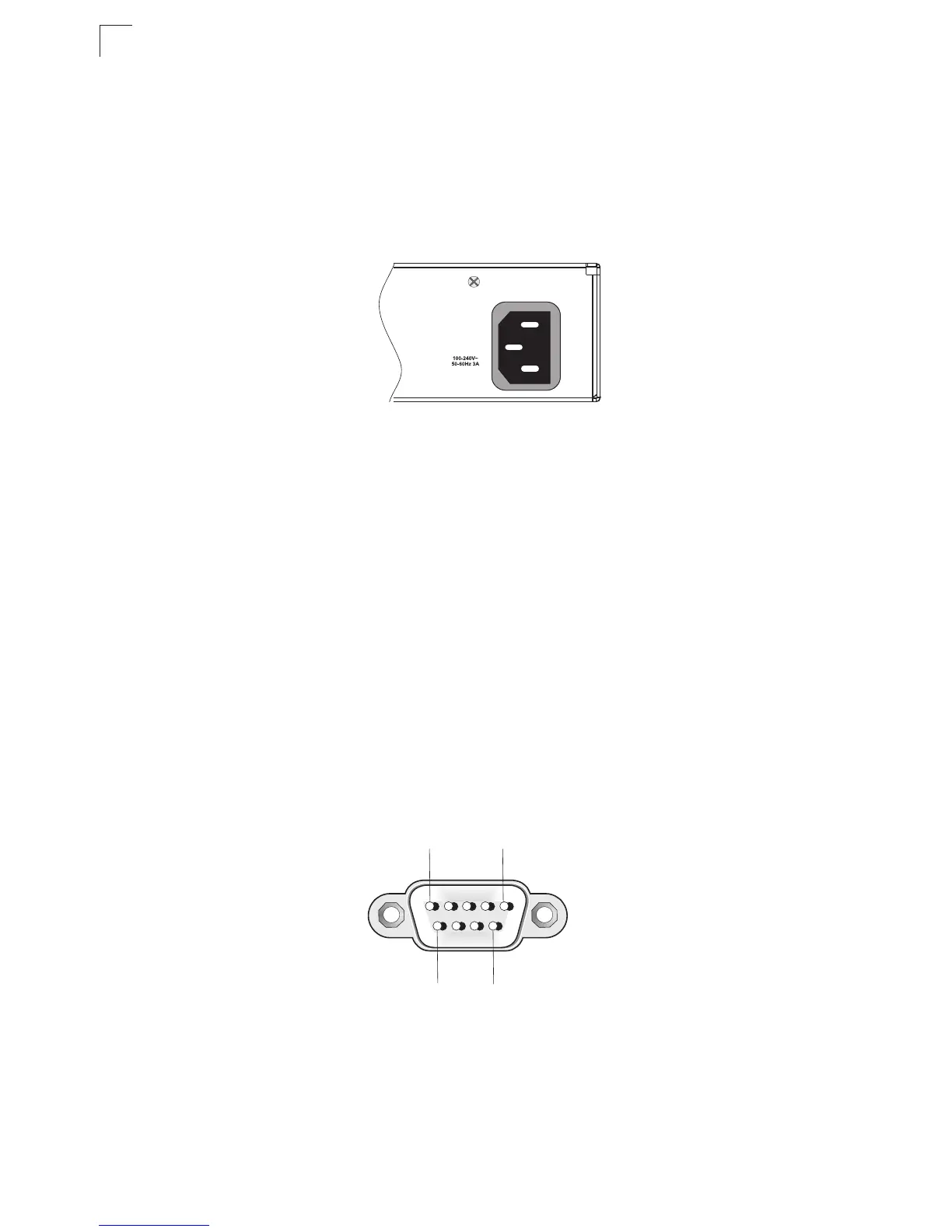

Figure 3-6 Power Socket
2. Plug the other end of the cable into a grounded, 3-pin, AC power source.
Note: For international use, you may need to change the AC line cord. You must use a
line cord set that has been approved for the socket type in your country.
3. Check the front-panel LEDs as the device is powered on to be sure the Power
LED is on. If not, check that the power cable is correctly plugged in.
Connecting to the Console Port
The DB-9 serial port on the switch’s rear panel is used to connect to the switch for
out-of-band console configuration. The command-line-driven configuration program
can be accessed from a terminal or a PC running a terminal emulation program. The
pin assignments used to connect to the serial port are provided in the following table.
Figure 3-7 Serial Port (DB-9 DTE) Pin-Out
1
5
6 9
