Edimax CAX1800 User Manual

9

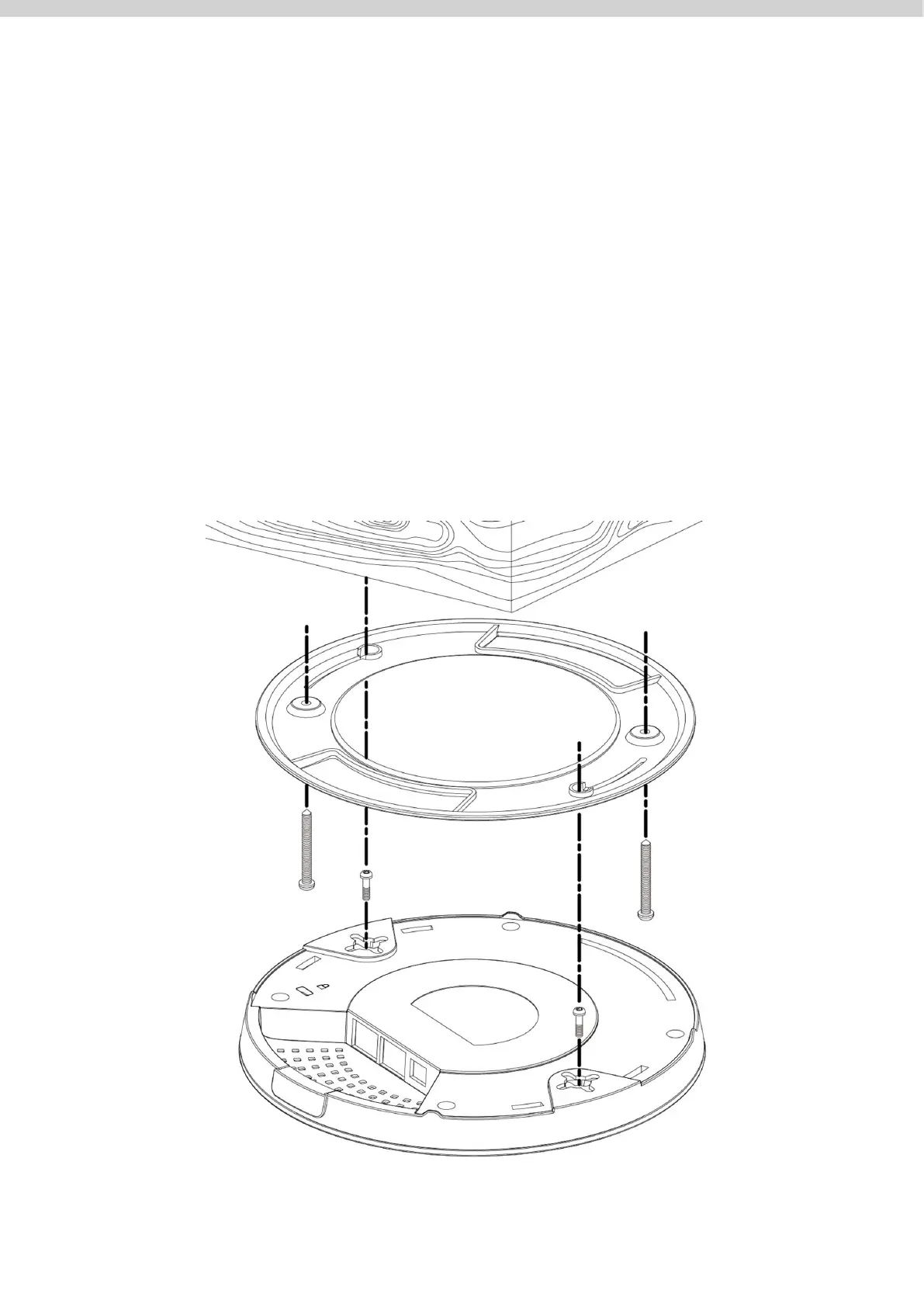

3. Fix the ceiling mount bracket to the desired location by inserting the
ceiling fixing screws B through the bracket ceiling holes A. Tighten the
ceiling fixing screws B to the marked screw position using a screw driver
to fix the bracket in place.
4. Fix the bracket rail screws C into the holes D on the device using a
screw driver. The cap of the screws should be protruding outwardly
from the holes D.
5. Insert the bracket rail screws C into the device fixing holes E.
6. Twist the device as the bracket rail screws C slide through the bracket
rail F.
Twist the device all the way until you feel that it is fixed in position.
A
A
B
B
C
C
D
D
E
E
F
F

Edimax CAX1800 Specifications

General

Brand	Edimax
Model	CAX1800
Category	Wireless Access Point
Language	English
