Technical Data

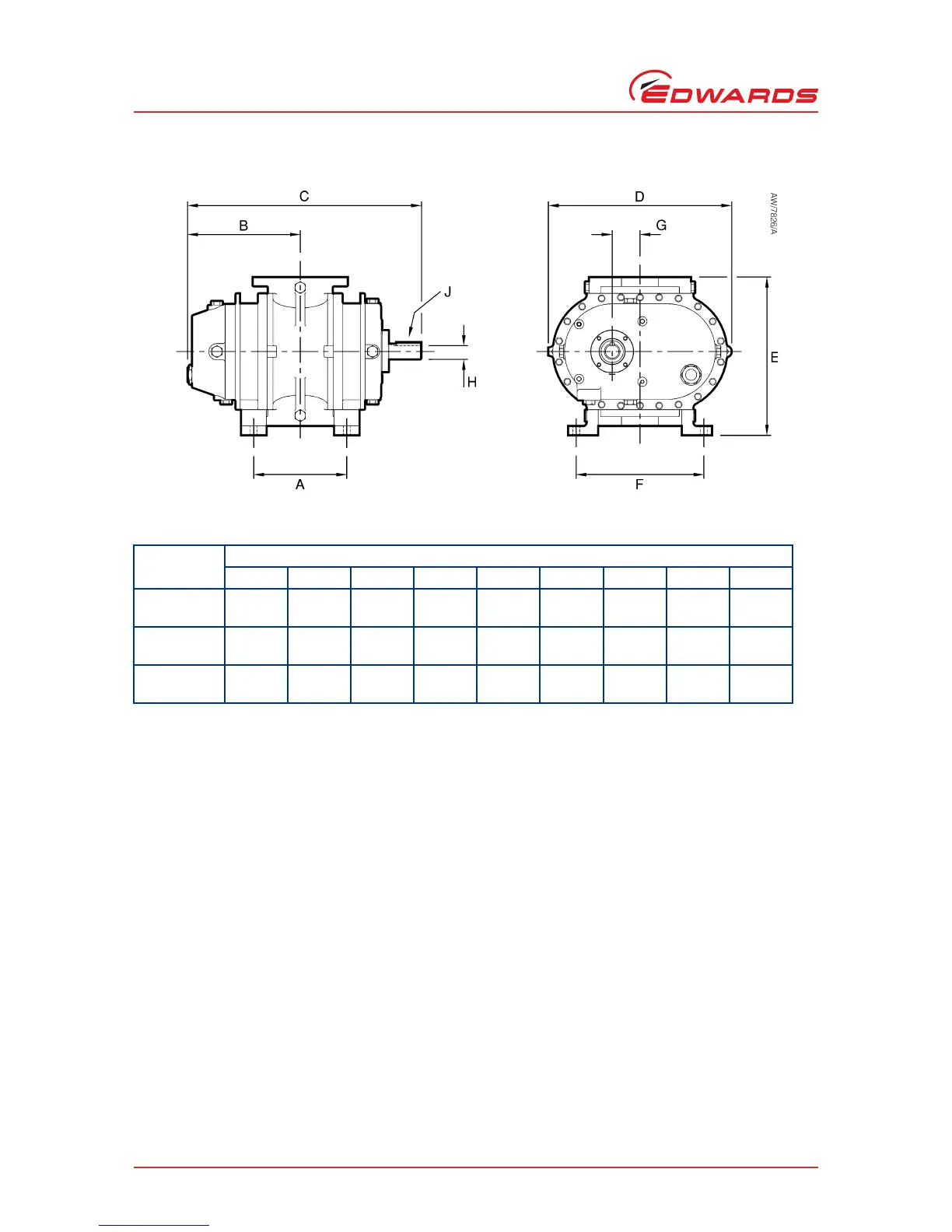

Figure 9 - Bareshaft V (vertical) booster pump dimensions
* 9 mm(3/8 inch) square key
Pump
Dimensions: mm (inch)
ABCDEFGHJ
900-607-MVR 254
(10.0)
308
(12.1)
641
(25.2)
502
(19.8)
406
(16.0)
350
(13.8)
76
(3.0)
43
(1.7)
*
900-615-MVR 454
(17.9)
409
(16.1)
843
(33.2)
502
(19.8)
406
(16.0)
350
(13.8)
76
(3.0)
43
(1.7)
*
900-622-MVR 636
(25.0)
497
(19.6)
1018
(40.1)
502
(19.8)
438
(17.2)
350
(13.8)
76
(3.0)
43
(1.7)
*
